Siemens Simatic DP 5 Universal terminal modules TM-E15S26-A1
View on Siemens 📄 Datasheet
Siemens

Siemens Simatic DP 5 Universal terminal modules TM-E15S26-A1 Part number 6ES7193-4CA40-0AA0

EAN / Barcode 4025515051749
Product Type Control Panel
Product Class Fieldbus, decentr. periphery - mounting frame
Category HMI's & PLC's
Sub-category Network
ETIM Class Fieldbus, decentr. periphery - mounting frame
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

Spare part

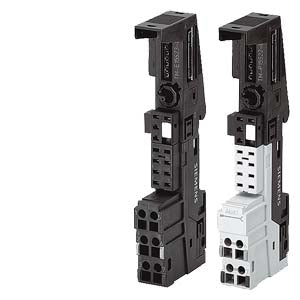

SIMATIC DP, 5 universal terminal modules TM-E15S26-A1 for ET 200S for electronic modules 15 mm width, Screw terminals, 2x6 terminal connections with terminal access to AUX1, AUX1 continuous 5 units per packing unit

Technical Specifications

Depth43 mm
Height157 mm
Input voltage AC 50 Hz230 V
Input voltage AC 60 Hz24 V
Input voltage DC24 V
Max. input current AC 50 Hz10 A
Max. input current AC 60 Hz10 A
Max. input current DC10 A
Max. output current AC 50 Hz10 A
Max. output current AC 60 Hz10 A
Max. output current DC10 A
Number of slots2
Output voltage AC 50 Hz24 V
Output voltage AC 60 Hz24 V
Output voltage DC120 V
Rail mounting possibleYes
System accessoryYes
Type of output voltageAC/DC
Type of voltage (input voltage)AC/DC
Wall mounting/direct mountingYes
Width15 mm
With pluggable modules, analogue I/OYes
With pluggable modules, communication modulesYes
With pluggable modules, digital I/OYes
With pluggable modules, function and technology modulesYes
With pluggable modules, othersYes
Part Width16 mm
Part Height17 mm
Part Depth5 mm
Weight460 g
Country of OriginRomania
