Product Overview

Ultra-Compact Unmanaged Industrial Ethernet Switch for Small Networks

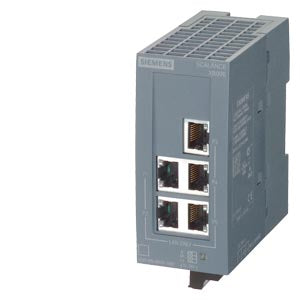

The SCALANCE XB005 is an ultra-compact unmanaged Industrial Ethernet switch designed for cost-effective implementation of small star and line topologies in industrial environments. This 5-port switch provides reliable 10/100 Mbps connectivity with plug-and-play operation, making it ideal for space-constrained applications requiring simple, economical networking solutions.

Key Features

• 5-Port Connectivity: 5 x 10/100 Mbps RJ45 ports with MDI-X pinning for connecting end devices or other network segments in small industrial networks
• Ultra-Compact Design: Smallest footprint in SCALANCE XB series with dimensions of only 45mm (W) × 87mm (H) × 100mm (D), perfect for space-critical installations
• Plug-and-Play Operation: Unmanaged design requires no configuration, with automatic data transmission rate detection and autocrossover function
• Advanced Diagnostics: Integrated LED diagnostics provide real-time visual status monitoring for power and link status on each port
• Dual Power Supply Options: Supports both 24V AC and 24V DC power supply for flexible installation requirements
• Cost-Effective Solution: Entry-level Industrial Ethernet switch optimized for small machine networks and budget-conscious applications

Technical Specifications

Network Performance: 5 x 10/100 Mbps RJ45 ports with MDI-X pinning, half/full duplex operation, auto-negotiation and autocrossover function, store-and-forward switching

Physical: 45mm (W) × 87mm (H) × 100mm (D), 0.254 kg, DIN rail or wall mounting, IP20 plastic housing

Environmental: Operating -10°C to +60°C, storage -40°C to +80°C, 95% relative humidity at 25°C, operating altitude up to 2000m

Power Supply: 24V AC/DC, 3-pole terminal block, ultra-low power consumption, overvoltage protection

Cable Specifications: Maximum 100m twisted pair, supports IE TP cables, compatible with IE FC RJ45 connectors, automatic polarity exchange

Applications

Perfect for small industrial networking applications including small machine-level automation networks, compact star and line topology implementations, space-constrained control cabinet installations, entry-level industrial device networking, simple plant unit connectivity, building automation systems, and cost-sensitive industrial networking projects.

Certifications & Compliance

Industrial Standards: CE marking, UL/CSA certification, RoHS compliant, industrial EMC compliance

Regulatory Compliance: Export Control AL: N / ECCN: 9N9999, WEEE Compliance under 2012/19/EU directive

REACH Regulation: Contains lead, lead monoxide, and silicic acid lead salt in concentrations higher than 0.1% w/w. These substances do not pose risks when used as intended.

Package Information

• EAN: 4019169853903
• UPC: 662643354102
• Net Weight: 0.254 kg
• Package Dimensions: 45.0 × 87.0 × 100.0 mm
• Country of Origin: Germany

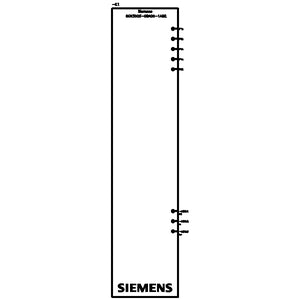

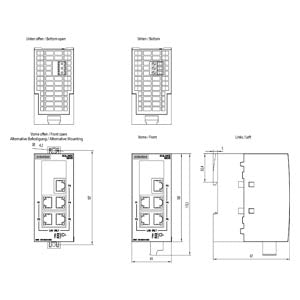

Download existing graphical data for this product:

Product Documentation

Product Datasheet

Technical Support

SCALANCE XB-000 Operating Manual

SCALANCE XB-000 Product Family
