Siemens Industrial Ethernet TP cord RJ45/ RJ45, Cat6A, 0.5m Part number 6XV1870-3QE50

Product Overview

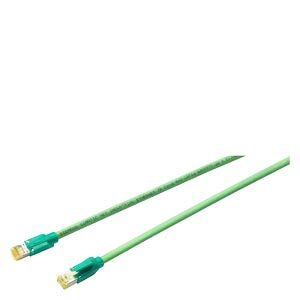

Industrial Ethernet TP Cord RJ45/RJ45, CAT 6A, TP cable 4x2, pre-assembled with 2 RJ45 connectors, length 0.5 m. This high-performance networking cable is designed for reliable data transmission in demanding industrial environments, providing seamless connectivity for Industrial Ethernet applications.

Key Features

• Professional Grade Construction: Cat.6a certified cable with 4x2 twisted pair configuration
• Ready-to-Use Design: Pre-assembled with factory-tested RJ45 connectors for quick and error-free commissioning
• Industrial Durability: Operates reliably in temperature range of -25°C to +80°C
• Automotive Industry Compatible: Silicone-free construction makes it suitable for use in automotive industry applications, including paint lines
• Interference Protection: Designed for interference-proof Industrial Ethernet FastConnect cabling system supporting 10/100/1000 Mbps

Technical Specifications

• Article Number: 6XV1870-3QE50
• Cable Length: 0.5 meters
• Cable Type: LI 02YSCH 4 x 2 x 0.15mm² PIMF GN FRNC
• Connector Type: RJ45 connectors x 2
• Cable Category: Cat.6a
• Wire Gauge: #26AWG
• Cable Diameter: 6.2mm
• Rated Operating Voltage: 80V
• Cable Color: Green
• Sheath Material: FRNC (Fire Resistant Non-Corrosive)
• Operating Temperature: -25°C to +80°C
• Net Weight: 0.037 kg
• Number of Circuits: 8-wire

Construction Details

• Cable Design: Halogen-free and silicon-free construction
• Shielding: Overlapped aluminium-clad foil sheathed in a braided screen of tin-plated copper wires
• Pin Assignment: 1:1 (straight-through configuration)
• Protection Rating: IP20
• Connector Housing Material: Plastic

Applications

• Industrial Ethernet networking
• SIMATIC system connections
• Machine-to-machine communication
• Industrial automation systems
• Process control applications
• Automotive industry installations

Benefits

• Simple cable laying due to small cable diameter
• Color-coded RJ45 connectors for differentiation between crossed and uncrossed lines
• Factory-tested quality assurance
• Compliance with industrial standards
• Quick and error-free commissioning thanks to pre-assembled configuration

Quality & Compliance

• Country of Origin: Hungary
• RoHS Compliance: Since 30.06.2006
• Export Control: AL : N / ECCN : EAR99H
• EAN: 4019169404914
• UPC: 662643220049

Packaging Information

• Packaging Dimensions: 5.50 x 19.00 x 2.00 cm
• Packaging Quantity: 1 piece
• Quantity Unit: 1 Piece
