Siemens

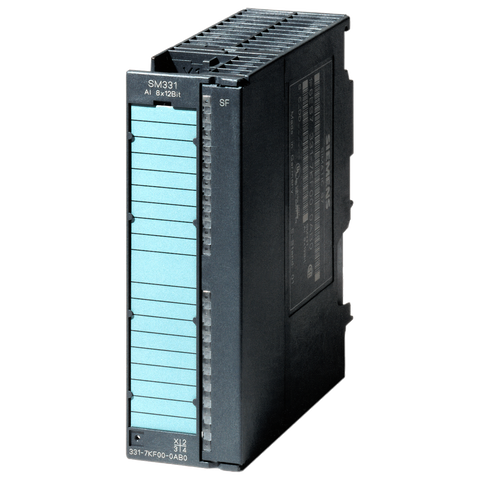

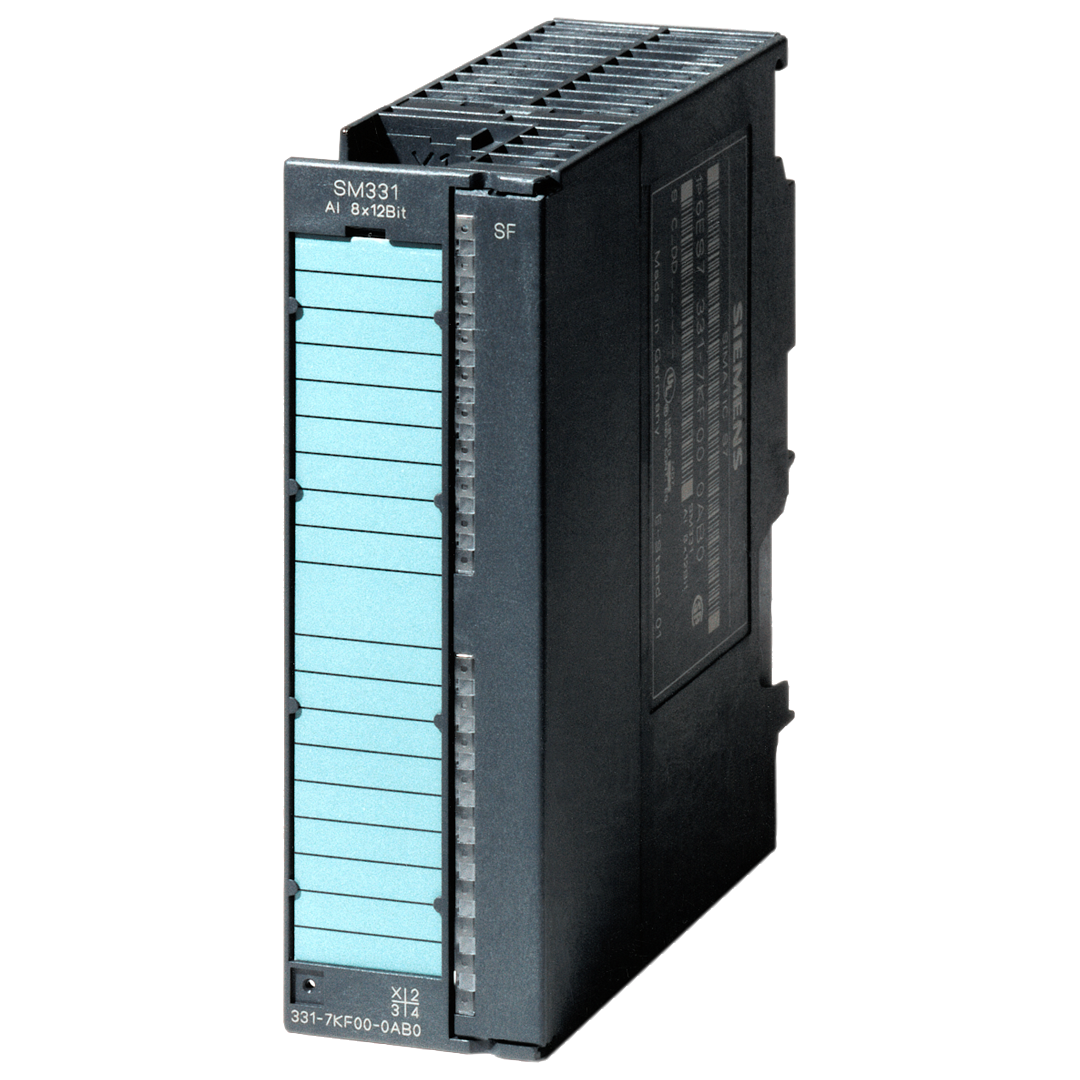

Siemens Simatic S7-300 Analog input, isolated, 40-pole Part number 6ES7331-1KF02-0AB0

EAN / Barcode 4025515078425
Product Type Control Panel
Product Class PLC analogue I/O-module
Category HMI's & PLC's
ETIM Class PLC analogue I/O-module
Back Order
💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

SM 331 Analog input modules can be used to connect the PLC to analog process signals. They are suitable for the connection of voltage and current sensors, thermocouples, resistors and resistance thermometers. The analog input modules convert analog signals from the process into digital signals for internal processing in the PLC.

Resolution from 9-bit to 15-bit + sign (with different conversion times), can be parameterized.

Technical Specifications

Analogue inputs configurableYes
Depth117 mm
Height125 mm
Input signal, configurableYes
Input, currentYes
Input, resistance thermometerYes
Input, resistorYes
Input, voltageYes
Number of analogue inputs8
Resolution of the analogue inputs13 Bit
Width40 mm
Part Width12 mm
Part Height15 mm
Part Depth5 mm
Weight296 g
Country of OriginGermany

Compatible Accessories & Components

Accessories

Siemens Front connect for signal modules, 40-pole

Siemens Front connect for signal modules, 40-pole

6ES7392-1BM01-0AA0
