Product Overview

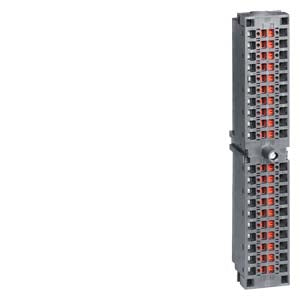

SIMATIC S7-300 Front Connector for Signal Modules with Spring-Loaded Contacts, 40-Pole

This high-quality front connector is designed for SIMATIC S7-300 signal modules, providing reliable and secure connections through spring-loaded contact technology. The 40-pole configuration enables efficient wiring and connection of analog and digital I/O modules, ensuring optimal performance in industrial automation applications.

Key Features

• Contact Type: Spring-loaded contacts for secure, maintenance-free connections
• Pole Configuration: 40-pole design for comprehensive signal module connectivity
• Compatibility: Designed specifically for SIMATIC S7-300 signal modules
• Quick Installation: Easy plug-and-play connection without tools required
• Retention Mechanism: Secure locking system prevents accidental disconnection
• Coding Capability: Can be coded to fit specific module types to prevent incorrect connections
• Wire Management: Organized terminal layout for efficient cable management

Technical Specifications

• Article Number: 6ES7392-1BM01-0AA0
• Net Weight: 0.095 kg
• Packaging Dimensions: 5.10 x 13.10 x 3.40 cm
• Connection Type: 40-pole spring-loaded contacts
• Wire Cross-Section: Supports standard industrial wire gauges
• Contact Material: High-quality conductive materials for reliable signal transmission
• Country of Origin: Germany
• EAN: 4025515062004
• UPC: 662643169775

Compliance & Certifications

• RoHS Compliance: Compliant since 31.03.2008
• WEEE Directive: Take-back obligation applicable
• Export Control: AL: N / ECCN: N
• Product Lifecycle: PM400 - Announcement of product phase-out (since 01.10.2023)
• Product Class: Standard product with return capability within guidelines

Environmental & Safety Information

• This product contains substances of very high concern (SVHC) as per REACH Article 33:
• Lead - concentration >0.1% w/w
• These substances are not expected to pose risks when used as intended, including proper disposal.

Applications

• Connection interface for SIMATIC S7-300 analog input/output modules
• Digital I/O module connectivity in automation systems
• Signal module wiring in process control applications
• Industrial automation system installations requiring reliable connections
• Maintenance and replacement of existing S7-300 system connectors
• System upgrades and expansions of S7-300 installations

Compatibility

• Compatible with: SIMATIC S7-300 signal modules including SM 331 analog input modules
• Module Types: 40-pole signal modules requiring spring contact connections
• System Integration: Seamless integration with existing S7-300 automation systems
• Wiring Solutions: Supports both individual wire connections and pre-wired solutions

Installation Benefits

• Tool-Free Connection: Spring-loaded contacts eliminate the need for screwdrivers
• Faster Installation: Quick plug-in connection reduces installation time
• Secure Retention: Locking mechanism ensures stable connections in industrial environments
• Maintenance-Free: Spring contacts maintain consistent connection pressure over time
• Error Prevention: Coding options help prevent incorrect module connections

Download existing graphical data for this product:

Technical Datasheet

Product Information

Front Connectors Family
