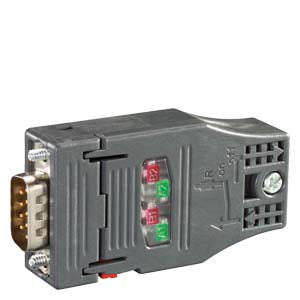

Siemens Profibus connector with fastconnect plug and axial cable outlet Part number 6GK1500-0FC10

Name: Siemens Profibus connector with fastconnect plug and axial cable outlet
Brand: Siemens
SKU: 6GK1500-0FC10

EAN / Barcode 4025515076230

Product Type Cable & Cable Management

Product Class Rectangular connector, set (industrial connector)

Category HMI's & PLC's

Sub-category Accessories

ETIM Class Rectangular connector, set (industrial connector)

Back Order

💬 Ask an Expert - Technical Support Available

✓ RoHS Declaration ♻ EPD

Product Description

PROFIBUS FC RS 485 plug 180 PROFIBUS connector with FastConnect connection plug and axial cable outlet for Industry PC, SIMATIC OP, OLM, Transfer rate: 12 Mbit/s, terminating resistor with isolating function, plastic enclosure.

Technical Specifications

Ambient temperature	80 °C
Coating housing	Uncoated
Degree of protection (IP), mounted	IP20
Depth	34.5 mm
Height	62 mm
Housing material	Plastic
Operating temperature	70 °C
Type of locking	Gland nut
Width	16 mm
Part Width	16 mm
Part Height	34 mm
Part Depth	62 mm
Weight	47 g
Country of Origin	Germany
