Product Overview

Industrial Power Cable Connector for Field Assembly

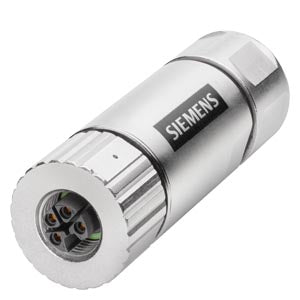

The Power M12 Cable Connector PRO is a robust circular connector designed for field assembly applications requiring reliable power connections in industrial environments. This L-coded female socket connector features axial cable outlet configuration and is engineered to withstand harsh industrial conditions while providing secure, waterproof connections for power distribution systems.

Key Features

• L-Coded Configuration: Female contact insert with L-coded (socket) design ensures proper keying and prevents incorrect connections in power distribution applications
• Field Assembly Design: Specifically engineered for on-site assembly, allowing flexible installation and customization of cable lengths to meet specific application requirements
• Axial Cable Outlet: Straight cable outlet configuration provides space-efficient installation in control cabinets and industrial equipment
• Industrial Grade Construction: Robust housing material designed to withstand demanding industrial environments with excellent mechanical stability
• Waterproof Protection: IP67 degree of protection when properly mounted, ensuring reliable operation in wet and harsh conditions
• Professional Grade: PRO series quality construction with enhanced durability and performance for demanding industrial applications

Technical Specifications

Connector Specifications:

• Contact Insert: Female (socket)
• Coding: L-coded for power applications
• Cable Outlet: Axial (straight)
• Mounting: Field assembly/on-site installation
• Locking Mechanism: Gland nut

Environmental Conditions:

• Operating Temperature: -40°C to +105°C
• Degree of Protection: IP67 (when properly mounted)
• Suitable for harsh industrial environments
• Resistant to vibration and mechanical stress

Electrical Specifications:

• Connectable Conductor Cross Section: 1.5mm² (fine-strand with or without cable end sleeves)
• Designed for power distribution applications
• L-coded configuration for power circuits

Physical Specifications:

• Weight: 0.096 kg
• Compact design for space-efficient installation
• Robust housing construction
• Professional-grade materials

Applications

Ideal for industrial power distribution applications including:

• SIMATIC NET power connections
• Industrial automation power supply systems
• Field device power distribution
• Control cabinet power connections
• Machine-level power distribution
• Industrial equipment power connections
• Harsh environment power applications

Installation & Assembly

Field Assembly: Designed for on-site assembly allowing custom cable preparation and length optimization for specific installation requirements.

Cable Preparation: Compatible with 1.5mm² fine-strand conductors with or without cable end sleeves, providing flexibility in cable termination methods.

Mounting: Axial cable outlet configuration facilitates easy installation in control cabinets and equipment with space constraints.

Protection: IP67 rating when properly assembled ensures reliable operation in industrial environments with exposure to moisture, dust, and contaminants.

Certifications & Compliance

Industrial Standards:

• RoHS compliant since January 7, 2006
• Industrial-grade construction meeting demanding environmental requirements
• Manufactured to Siemens quality standards

Regulatory Compliance:

• Export Control: AL: N / ECCN: N
• WEEE: Not subject to take-back obligation under 2012/19/EU directive

REACH Regulation: Contains lead in concentrations higher than 0.1% w/w. Based on current information, this substance does not pose risks when used as intended, including disposal.

Package Information

• EAN: 4019169857291
• UPC: 804766950735
• Net Weight: 0.096 kg
• Package Dimensions: 17.5 × 24.0 × 3.4 cm
• Packaging: 1 pack = 1 unit
• Country of Origin: Germany

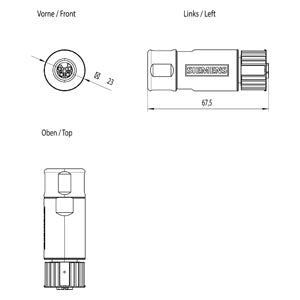

Download existing graphical data for this product:
