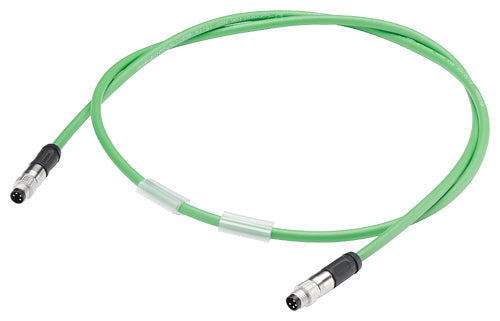

Siemens Bus cable for ET connection, M8 to M8, male, 4-way, 5m Part number 6ES7194-2LH50-0AA0

Product Overview

The Siemens Bus Cable (SKU: 6ES7194-2LH50-0AA0) is a pre-assembled 5-meter, 4-core shielded cable equipped with two M8 4-pin connectors for quick and reliable ET-CONNECTION wiring. Designed for connecting SIMATIC ET 200AL and other distributed I/O nodes, it offers durable performance in industrial environments with IP65/IP67 protection and high mechanical endurance for flexible routing.

Key Features

• Flexible 4-core shielded cable with 2 × M8 4-pin connectors (male/female)
• Factory pre-assembled for plug-and-play installation
• Optimized for ET-CONNECTION nodes (e.g., SIMATIC ET 200AL)
• Industrial-grade protection up to IP65/IP67
• High durability with 1 million bending cycles (radius 100 mm)
• Suitable for continuous motion in cable carriers
• Silicone-free and designed for long-term industrial use

Technical Specifications

• Product Type: Bus cable, pre-assembled
• Article Number: 6ES7194-2LH50-0AA0
• Cable Length: 5 m
• Number of Cores: 4
• Cable Designation: 2Y(ST)CY 1x4x0.5/1.0-100-GN
• Outer Diameter of Inner Conductor: 0.5 mm
• Outer Diameter of Core Insulation: 1 mm
• Outer Diameter of Cable Sheath: 5 mm
• Cable Sheath Color: Green
• Core Insulation Colors: White, Yellow, Blue, Orange
• Shielding: Overlapped aluminum-clad foil with tinned copper braid
• Material of Sheath: PVC
• Material of Core Insulation: PE
• Weight per Length: 34 kg/km
• Halogen-Free: No
• Silicone-Free: Yes
• Outgoing Feeder Type: 180° cable outlet
• Permissible Bending Radius (Single Bend): ≥ 20 mm
• Permissible Bending Radius (Multiple Bends): ≥ 40 mm
• Continuous Bending Radius: 100 mm
• Bending Cycles (Cable Carrier): 1,000,000 cycles at radius 100 mm, 4 m/s, 4 m/s²
• Ambient Temperature (Operation): -30 °C to +80 °C
• Ambient Temperature (Storage/Transport): -40 °C to +80 °C
• Degree of Protection: IP65 / IP67

Compliance & Certifications

• Complies with IEC 60529 IP65/IP67 standards for dust and water protection
• Designed for use in industrial automation and ET-CONNECTION networks
• Meets Siemens SIMATIC system quality and safety standards

Applications

Ideal for connecting ET-CONNECTION nodes such as SIMATIC ET 200AL modules and other distributed I/O components. The cable’s flexible, shielded design makes it suitable for dynamic installations in cable carriers, control panels, and industrial machinery requiring robust signal transmission and long service life in harsh environments.
