Product Overview

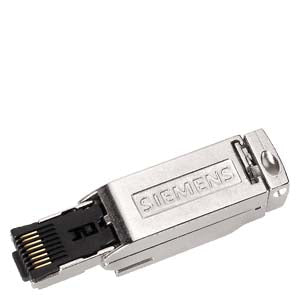

Industrial Ethernet RJ45 Connector with FastConnect Technology for Gigabit Applications

The Industrial Ethernet FastConnect RJ45 plug is a professional-grade networking connector engineered for high-performance industrial applications. This CAT6-rated connector supports data transmission speeds up to 1000 Mbps and features a rugged metal enclosure with advanced FastConnect technology for reliable, high-speed Industrial Ethernet connections in demanding industrial environments.

Key Features

• Gigabit Performance: Supports 10/100/1000 Mbps data transmission rates for demanding industrial networking and modern automation systems
• Rugged Metal Enclosure: Robust metal housing provides superior mechanical protection and electromagnetic shielding for harsh industrial environments
• FastConnect Technology: Advanced FC connection system enables quick, secure cable termination with consistent performance and reduced installation time
• 180° Cable Outlet: Straight cable outlet configuration optimizes space utilization and provides flexible installation options in control cabinets
• 4x2 Cable Compatibility: Specifically designed for IE FC TP Cable 4x2 (AWG24), ensuring optimal performance with Siemens Industrial Ethernet systems
• Industrial-Grade Reliability: Enhanced durability with secure latching mechanism prevents accidental disconnection in vibrating equipment

Technical Specifications

Performance: 10/100/1000 Mbps, CAT6, RJ45 plug-in connector, FTP (Foiled Twisted Pair) shielding, 8P8C contact configuration

Physical: 13.7mm (W) × 16mm (H) × 55mm (D), 0.035 kg, rugged metal enclosure, 180° cable outlet

Environmental: Operating temperature -40°C to +85°C, IP20 protection when installed, suitable for harsh industrial environments

Electrical: IE FC TP Cable 4x2 (AWG24) compatibility, FastConnect technology, secure latching tabs, Industrial Ethernet standards compliance

Applications

Perfect for industrial networking applications including industrial automation systems, SIMATIC NET infrastructure installations, manufacturing execution systems, process control and monitoring networks, machine-to-machine communication, data acquisition and SCADA networks, and industrial IoT connectivity solutions.

Installation & Performance Benefits

FastConnect Technology: Advanced connection system provides secure, reliable cable termination with reduced installation time and consistent performance. Optimized for IE FC TP Cable 4x2 (AWG24) with precise cable preparation requirements.

Enhanced Reliability: Metal enclosure provides superior electromagnetic shielding for reliable operation in electrically noisy environments. Wide operating temperature range ensures reliable performance across diverse industrial applications.

Certifications & Compliance

Industrial Standards: RoHS compliant since March 31, 2009, Industrial Ethernet performance standards, CAT6 certification, designed for applications up to 10 Gbps in industrial environments

Regulatory Compliance: Export Control AL: N / ECCN: N, WEEE not subject to take-back obligation under 2012/19/EU directive

REACH Regulation: Currently no SVHC information available from supply chain. Product screening procedures in place for continuous monitoring.

Package Information

• EAN: 4019169853965
• UPC: 040892551778
• Net Weight: 0.035 kg
• Package Dimensions: 5.0 × 6.1 × 3.3 cm
• Country of Origin: Poland
