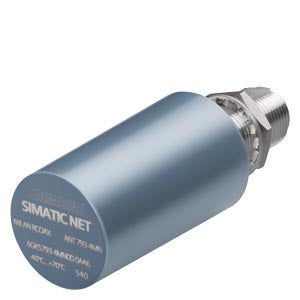

Siemens IWLAN Antenna for RCoax systems, N-female conn. 5GHz
Log in to view pricing
Sign in with your trade account to access live pricing and place orders. New to Rubicon Industrial Technology? Create an account in seconds.
Product Description
Product Overview
Industrial Wireless LAN Antenna for RCoax Systems
The ANT793-4MN is a high-performance IWLAN antenna specifically designed for RCoax systems operating at 5 GHz frequency. This Lambda/4 antenna delivers omnidirectional coverage with a 6 dBi gain, making it ideal for industrial wireless applications requiring reliable 360-degree signal distribution.
Key Features
Omnidirectional Coverage: Features a true omnidirectional radiation pattern with 360° horizontal radiating angle and 40° vertical radiating angle, ensuring comprehensive wireless coverage in industrial environments.
High Gain Performance: Delivers 6 dBi gain for extended range and improved signal strength, optimizing wireless network performance in demanding industrial applications.
Robust Construction: Built with a polycarbonate housing and rated IP65 for protection against dust and water ingress, making it suitable for harsh industrial environments.
Wide Operating Temperature Range: Operates reliably from -40°C to +70°C, ensuring consistent performance across extreme temperature conditions.
Technical Specifications
Frequency Band: 5 GHz (5.15-5.85 GHz transmission range) Antenna Type: Lambda/4 omnidirectional Gain: 6 dBi Polarization: Linear vertical polarized Connector Type: N-female connector Degree of Protection: IP65 Operating Temperature: -40°C to +70°C Dimensions: 78.7 mm height × 30 mm diameter Weight: 0.065 kg Material: Polycarbonate housing Mounting: Wall or mast mounting options available
Applications
Ideal for industrial wireless LAN applications including:
- Manufacturing facility wireless networks
- Warehouse and logistics connectivity
- Process automation wireless systems
- Industrial IoT device connectivity
- Remote monitoring and control systems
Compliance & Standards
RoHS Compliant: Yes (since 01.07.2006) Wi-Fi Compliance: Meets wireless communication standards Export Control: AL: N / ECCN: N Country of Origin: Germany
Environmental Compliance
REACH Regulation: This product contains lead in concentrations higher than 0.1% weight by weight (w/w). Based on current information, this substance does not pose any risk when the product is used as intended, including disposal.
Package Information
EAN: 4019169851534 UPC: 662643297478 Packaging: Single unit Net Weight: 0.065 kg Package Dimensions: 78.7 × 30.0 × 30.0 mm
Download existing graphical data for this product:
Additional Information
| IP Rating | IP65 |
| IP Rating Detailed | IP65 (, IP65 design, dimensions and weights height 787 mm diameter 30 mm net weight 65 g product features, product functions, product components |
| Compliance/Standards | IEC 81346-2 |
| Part Width (mm) | 78,70mm |
| Part Height (mm) | 30,00mm |
| Part Depth (mm) | 30,00mm |
| Weight (g) | 0,065 Kg |
| description | ANT793-4MN IWLAN antenna for RCoax systems; Lambda/4 with omnidirectional Characteristic, 6 dBi incl. N-female plug IP65 (-40-+70 °C), 5 GHz. |
| country_of_origin | Germany |
