Product Overview

Compact Unmanaged Industrial Ethernet Switch for Small Networks

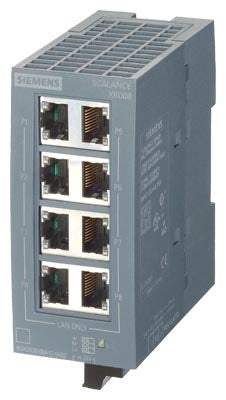

The SCALANCE XB008 is an unmanaged Industrial Ethernet switch designed for cost-effective implementation of small star and line topologies in industrial environments. This compact 8-port switch provides reliable 10/100 Mbps connectivity with plug-and-play operation, making it ideal for machine-level networking applications requiring simple, space-saving solutions.

Key Features

• 8-Port Connectivity: Features 8 x 10/100 Mbps RJ45 ports with MDI-X pinning for connecting end devices or other network segments in small industrial networks
• Plug-and-Play Operation: Unmanaged design requires no configuration during commissioning, with automatic data transmission rate detection and autocrossover function
• Advanced Diagnostics: Integrated LED diagnostics provide real-time visual status monitoring for power and link status on each port for easy troubleshooting
• Dual Power Supply Options: Supports both 24V AC and 24V DC power supply for flexible installation requirements in various industrial environments
• Compact Design: Space-saving design optimized for DIN rail mounting in control cabinets with IP20 protection rating

Technical Specifications

Network Performance:

• 8 x 10/100 Mbps RJ45 ports with MDI-X pinning
• Half/full duplex operation
• Auto-negotiation and autocrossover function
• Store-and-forward switching architecture
• Automatic polarity exchange capability

Physical Specifications:

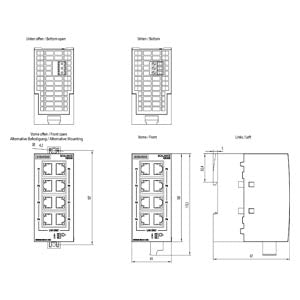

• Dimensions: 35mm (W) × 123mm (H) × 147mm (D)
• Weight: 0.270 kg
• Mounting: DIN rail (top hat rail)
• Enclosure: Compact plastic housing
• Degree of Protection: IP20

Environmental Conditions:

• Operating Temperature: -10°C to +60°C
• Storage Temperature: -40°C to +80°C
• Relative Humidity: 95% at 25°C (non-condensing)
• Operating Altitude: Up to 2000m above sea level

Power Supply:

• Supply Voltage: 24V AC/DC
• Power Connection: 3-pole terminal block
• Current consumption: Low power design for energy efficiency
• Overvoltage protection at input

Cable Specifications:

• Maximum cable length: 100m for twisted pair
• Compatible with Industrial Ethernet TP cables
• Supports IE FC RJ45 connectors
• Alternative cable combinations supported

Applications

Perfect for small industrial networking applications including:

• Machine-level automation networks
• Small star and line topology implementations
• Control cabinet networking solutions
• Plant unit connectivity
• Simple industrial device networking
• Building automation systems (with 24V AC variants)

Certifications & Compliance

Industrial Standards:

• CE marking for European conformity
• UL/CSA certification for North American markets
• RoHS compliant for environmental standards
• Industrial EMC compliance

Regulatory Compliance:

• Export Control: AL: N / ECCN: 9N9999
• WEEE Compliance: Subject to take-back obligation under 2012/19/EU directive

REACH Regulation: Contains lead in concentrations higher than 0.1% w/w. Based on current information, this substance does not pose risks when used as intended, including disposal.

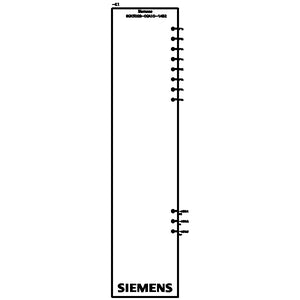

Installation & Connectivity

Mounting: Standard DIN rail mounting with secure retention mechanism. Compact design allows multiple units to be installed in small control cabinets.

Power Connection: 3-pole terminal block for power supply (24V AC/DC) and functional ground connection. Clear terminal labeling for reliable installation.

Network Connection: Standard RJ45 connectors with integrated autocrossover function. Compatible with uncrossed connecting cables and supports various Industrial Ethernet cable types.

LED Diagnostics: Individual LEDs for each port indicating power status, link status, and data communication activity for quick network diagnostics.

Package Information

• EAN: 4047622598368
• UPC: 804766709593
• Net Weight: 0.270 kg
• Package Dimensions: 35.0 × 123.0 × 147.0 mm
• Country of Origin: Germany
