Product Overview

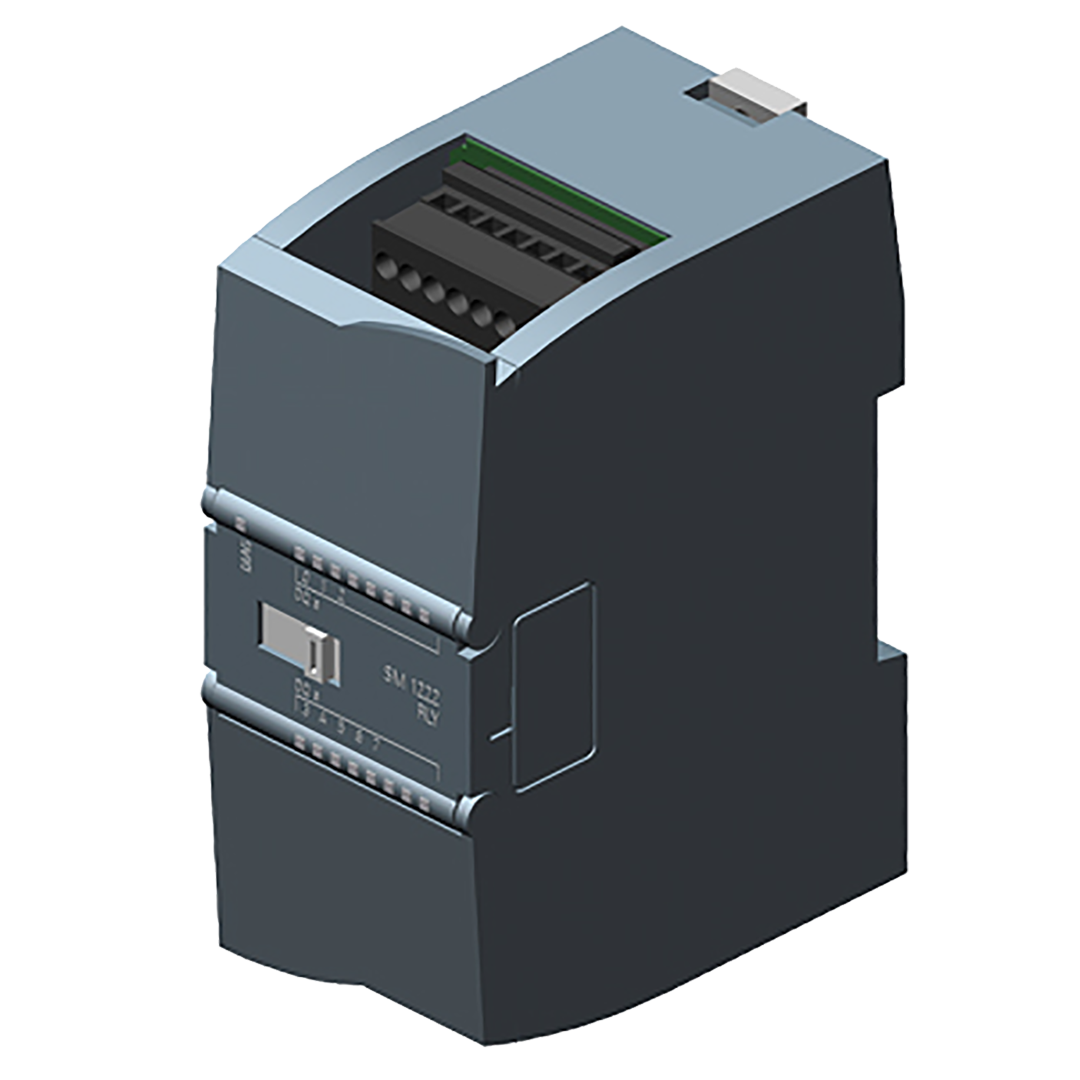

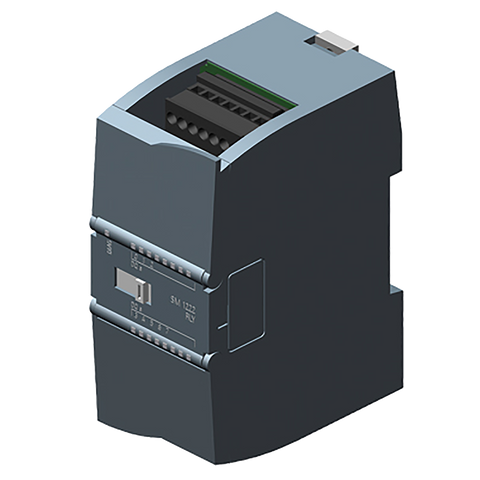

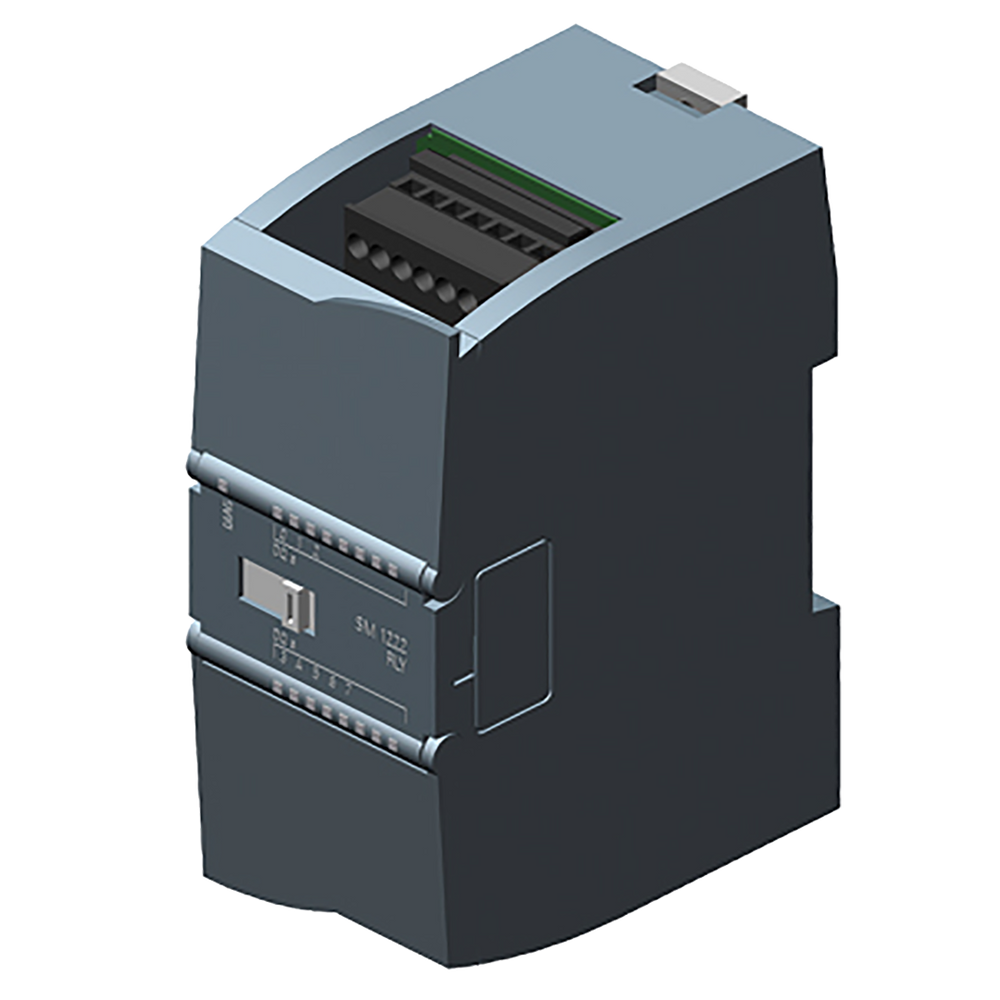

SIMATIC S7-1200 Digital Output Module SM 1222 - A compact and efficient 8-channel digital output module designed for industrial automation applications. This transistor-based output module provides reliable 24V DC switching capabilities with 0.5A current capacity per channel, making it ideal for controlling smaller loads and actuators in space-constrained installations.

Key Features

8 Digital Outputs - Provides 8 independent digital output channels for comprehensive control applications

24V DC Operation - Operates on standard 24V DC supply voltage with permissible range of 20.4-28.8V DC

Transistor Output Technology - Features robust transistor outputs with 0.5A continuous current capacity per channel

Compact Design - Space-efficient module design with dimensions of 100mm (H) x 75mm (D) optimized for DIN rail mounting

Flexible Connection - Equipped with screw/spring clamp terminals for secure and reliable electrical connections

Fast Response Time - Ultra-fast switching with 0.05 millisecond time delay for precise control applications

Technical Specifications

Supply Voltage: 24V DC (permissible range: 20.4-28.8V DC)
Output Type: Transistor
Current Rating: 0.5A per output
Number of Outputs: 8
Connection Type: Screw/spring clamp connection
Mounting: DIN rail (35mm)
Protection Rating: IP20
Time Delay: 0.05 milliseconds
Operating Temperature: -20°C to +60°C
Dimensions: 100mm (H) x 75mm (D) x 90mm (W)
Net Weight: 0.155 kg
Country of Origin: Germany

Compliance & Certifications

RoHS Compliance - Fully compliant with RoHS directive since March 15, 2013
ATEX Certification - Gas explosion protection category 3G
Export Control: AL: N / ECCN: N
WEEE Compliance - Subject to take-back obligation under WEEE directive (2012/19/EU)

Signal Conversion

The SM 1222 digital output signal modules convert the internal signal level of the SIMATIC S7-1200 Controller into the external signal level required for the process. This ensures seamless integration between the controller and field devices.

Applications

Perfect for industrial automation systems requiring compact digital output control including:

• Small motor control and actuation
• Valve and solenoid operation for lighter loads
• Indicator lights and status displays
• Process control equipment
• Compact manufacturing automation systems
• Building automation applications

Compatibility

Designed for seamless integration with SIMATIC S7-1200 controller systems (except CPU 1211C) and compatible with TIA Portal programming environment. The fine-granular design approach saves space in control cabinets and optimizes hardware costs.
