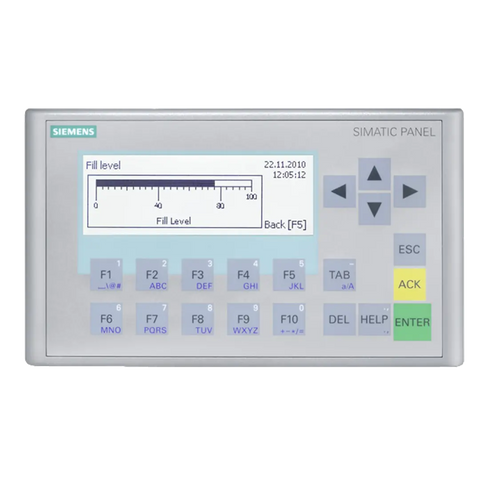

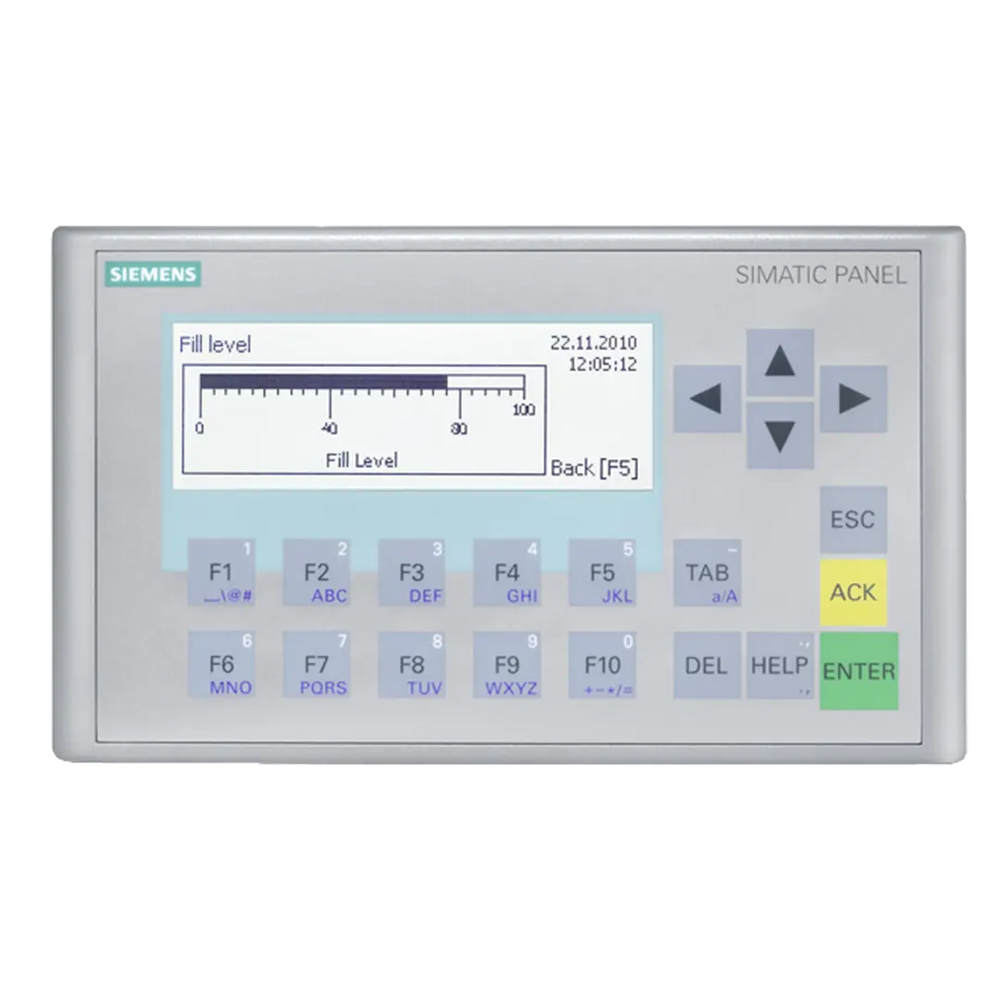

Siemens Basic mono panel, key operation, 3", black/white Part number 6AV6647-0AH11-3AX0

Name: Siemens Basic mono panel, key operation, 3", black/white
Brand: Siemens
SKU: 6AV6647-0AH11-3AX0

EAN / Barcode 4019169669672

Product Type Control Panel

Product Class Graphic panel

ETIM Class Graphic panel

Back Order

View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

✓ RoHS Declaration

Product Description

The SIMATIC Basic Panel KP300 Basic mono PN - 6AV6647-0AH11-3AX0 has a monochrome 3" LCD display and can be operated via the keypad. The communication with the controller is made via the Profinet interface. Configuration of the Basic Panel KP300 Basic mono PN - 6AV6647-0AH11-3AX0 is possible as from WinCC Basic V11 and/or STEP7 BASIC V1.

Technical Specifications

Built-in depth	30 mm
Colour display	Yes
country_of_origin	China
Degree of protection (IP), front side	IP65
description	SIMATIC HMI KP300 Basic mono PN, Basic Panel, key operation, 3" FSTN LCD display, black/white, PROFINET interface, configurable from WinCC Basic V11/ STEP 7 Basic V11, contains open-source software, which is provided free of charge see enclosed CD
Height of the front	97 mm
IP Rating	IP20, IP65
IP Rating Detailed	IP65 6AV66470AH113AX0 Page 2, IP20 NEMA (front) Enclosure Type 4 at the front Yes Enclosure Type 4x at the front Yes Standards, approvals, certificates CE mark Yes cULus Yes RCM (formerly C
Number of colours of the display	4
Number of function buttons, programmable	10
Number of HW-interfaces industrial Ethernet	1
Number of interfaces PROFINET	1
Number of online languages	5
Number of password levels	50
Number of pixels, horizontal	240
Number of pixels, vertical	80
Number of system buttons	10
Operating temperature	50 °C
Part Depth (mm)	5,00mm
Part Height (mm)	19,50mm
Part Width (mm)	13,90mm
Process default value (input) possible	Yes
Process value representation (output) possible	Yes
Screen diagonal	3.6 inch
Supply voltage DC	28.8 V
Supporting protocol for EtherNet/IP	Yes
Supporting protocol for Modbus	Yes
Supporting protocol for TCP/IP	Yes
Useful project memory/user memory	1000 kByte
Voltage type (supply voltage)	DC
Weight (g)	0,375 Kg
Width of the front	165 mm
With alpha numeric keyboard	Yes
With message indication	Yes
With message system (incl. buffer and confirmation)	Yes
With numeric keyboard	Yes
With recipes	Yes
