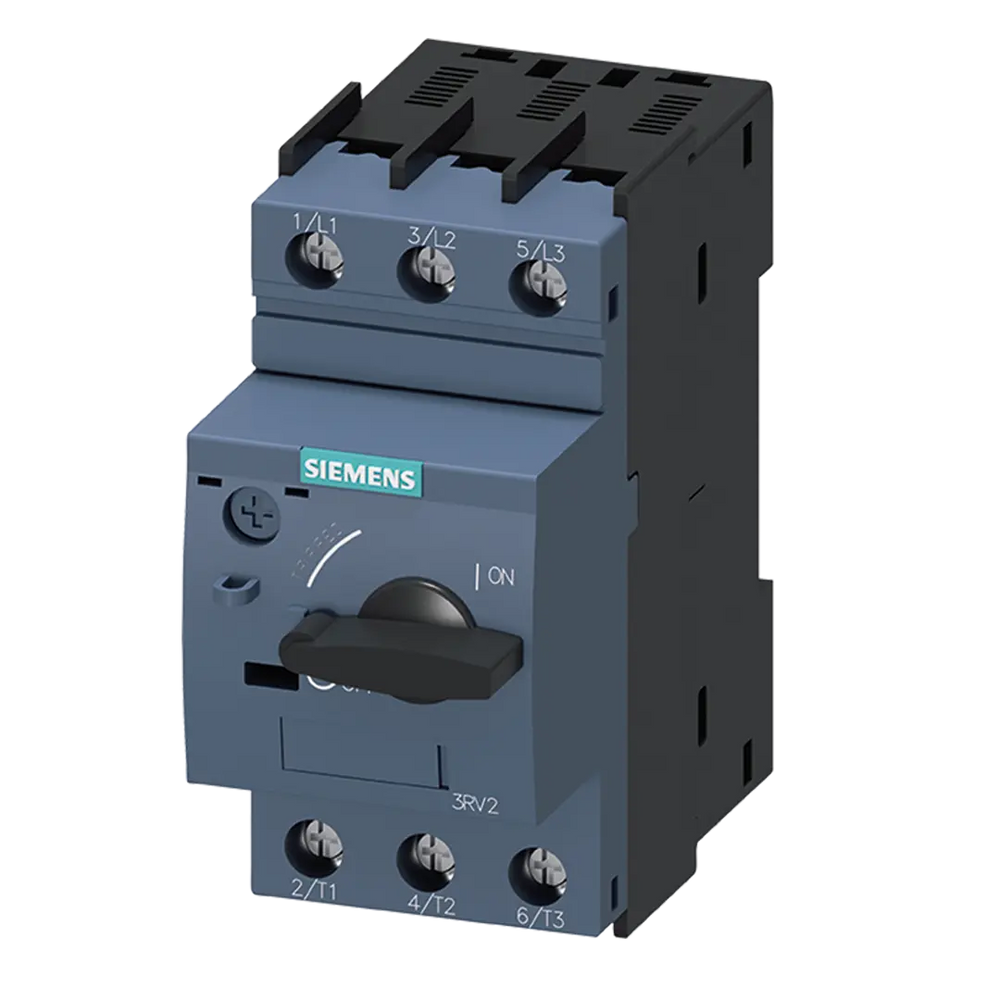

Siemens Circuit breaker for motor protection, size S2, 650A Part number 3RV2031-4VA10

EAN / Barcode 4011209945692
Product Type Control Panel
Product Class Motor protection circuit-breaker
ETIM Class Motor protection circuit-breaker
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD🌱 EcoTech Profile

Product Description

The SIRIUS circuit breaker 3RV2031-4VA10 from Siemens in size S2 is a compact, current-limiting circuit breaker for load feeders up to 22 kW at AC-3/400 V. Due to a short-circuit protection of 650A and an adjustable overload protection of 35 - 45 A, the circuit breaker is ideally suited for the protection of motors.

Technical Specifications

Adjustment range undelayed short-circuit release650 A
Degree of protection (IP)IP20
Depth149 mm
Device constructionBuilt-in device fixed built-in technique
Height140 mm
Number of poles3
Overload release current setting35 A
Phase failure sensitiveYes
Power loss24.5 W
Rated operating voltage690 V
Rated operation power at AC-3, 230 V11 kW
Rated operation power at AC-3, 400 V22 kW
Rated permanent current Iu45 A
Rated short-circuit breaking capacity lcu at 400 V, AC65 kA
Switch off techniqueMagnetic
Type of control elementOther
Type of electrical connection of main circuitScrew connection
Width55 mm
With thermal overload protectionYes
Part Width62 mm
Part Height147 mm
Part Depth167 mm
Weight1071 g
Country of OriginGermany
