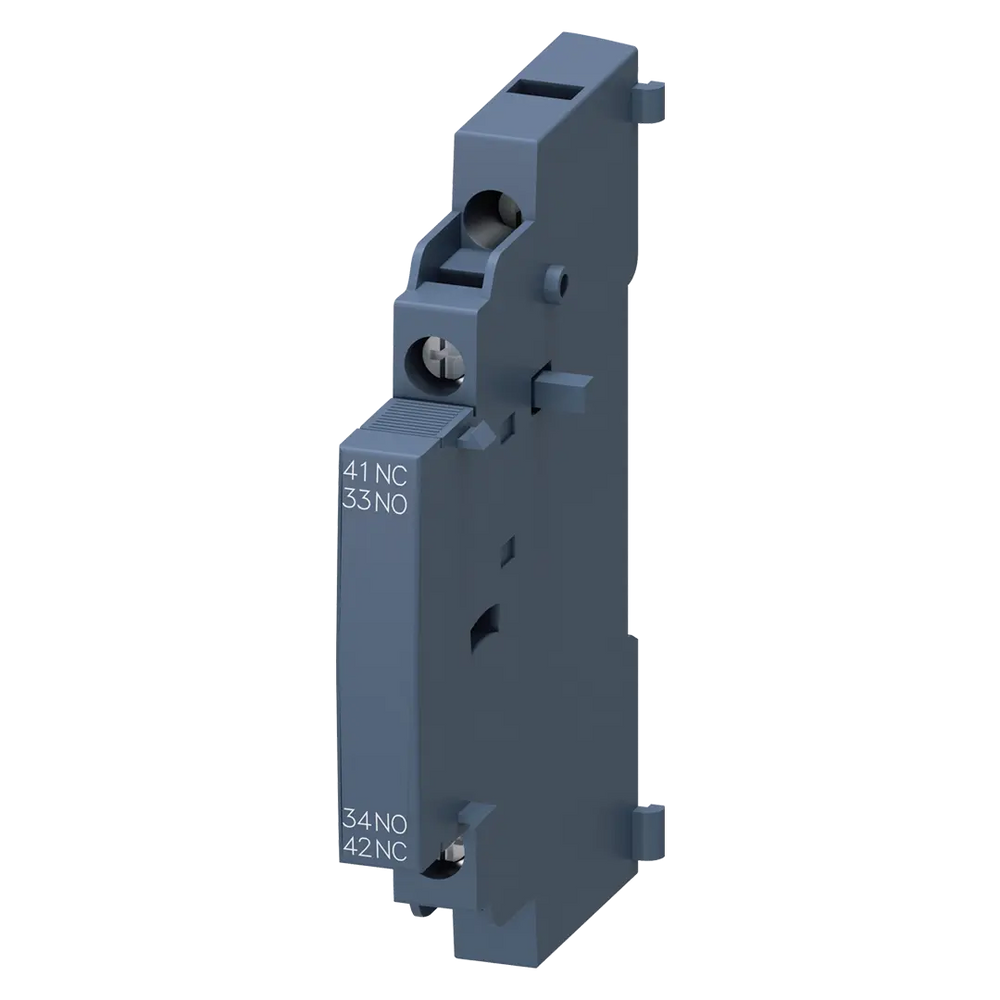

Siemens Auxiliary switch, screw, 1 NO+1 NC

Product Overview

The SIRIUS 3RV2901-1A is a side-mounted auxiliary switch designed for seamless integration with 3RV2 circuit breakers. This compact auxiliary contact block provides 1 NO + 1 NC contact configuration with screw terminal connections, enabling remote monitoring and control of circuit breaker status in industrial automation applications.

Key Features

This auxiliary switch is part of the SIRIUS modular system, providing simple, efficient, and reliable signaling for circuit breaker applications. Features side-mounting design for easy installation and maintenance, with robust construction suitable for industrial environments and applications requiring circuit breaker status feedback.

Technical Specifications

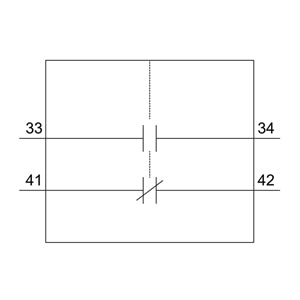

• Contact Configuration: 1 NO + 1 NC (1 Normally Open + 1 Normally Closed)
• Mounting Type: Side-mounted (lateral)
• Connection Type: Screw terminals
• Frame Size Compatibility: S00/S0 circuit breakers
• Compatible Products: 3RV2 series circuit breakers
• Rated Operational Current: 4A at AC-15, 230V
• Rated Voltage: 690V AC / 250V DC
• Current Rating: 2A / 10A
• Weight: 0.044kg

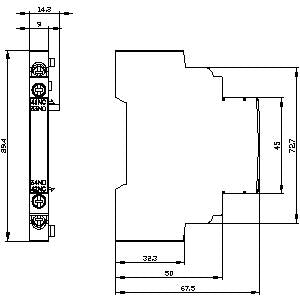

• Dimensions: 90 x 9.5 x 70mm (H x W x D)
• Number of Contacts: 2 (1 NO + 1 NC)
• Number of Changeover Contacts: 0

Electrical Ratings

• AC Voltage Rating: Up to 690V AC
• DC Voltage Rating: Up to 250V DC
• Operational Current: 4A at AC-15, 230V
• Contact Material: Copper contacts
• Switching Capacity: Suitable for control circuit applications
• Mechanical Life: High-reliability contact operation
• Electrical Life: Extended operational cycles

Design & Construction

Features compact side-mounting design with screw terminal connections for secure and reliable electrical connections. The auxiliary switch is designed for plug-in fixing, making installation and maintenance straightforward. Robust construction ensures reliable operation in industrial environments.

Applications

This auxiliary switch is designed for various control and monitoring applications, including:

• Circuit breaker status monitoring
• Remote indication of circuit breaker position
• Control circuit interlocking
• Alarm and signaling systems
• Motor control applications
• Industrial automation systems
• Process control applications
• Safety circuit applications

Installation & Mounting

• Mounting: Side-mounted on 3RV2 circuit breakers
• Installation: Plug-in fixing for easy attachment
• Maximum Quantity: Up to 4 auxiliary contacts per circuit breaker
• Combination: Can be combined with other auxiliary switches and signaling switches
• Compatibility: Compatible with all 3RV2 series circuit breakers
• Tool Requirements: Standard screwdriver for terminal connections

SIRIUS System Integration

• Modular System: Part of the comprehensive SIRIUS modular system
• Compatibility: Designed specifically for 3RV2 circuit breakers
• Flexibility: Can be combined with other SIRIUS components
• Standardization: Consistent design and connections across SIRIUS range
• Future-Proof: Part of current generation SIRIUS products

Wiring & Connections

• Terminal Type: Screw terminals
• Wire Range: Standard control circuit wire sizes
• Connection Method: Screw-clamp connections

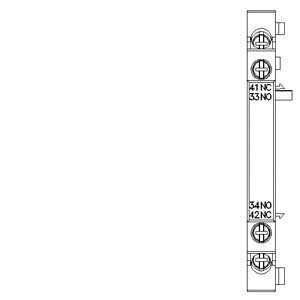

• Terminal Markings: Clearly marked NO and NC terminals
• Accessibility: Easy access for wiring and maintenance

Compliance & Certifications

• Country of Origin: Romania
• EAN: 4011209737075
• RoHS Compliance: Since 01.10.2009
• WEEE Compliance: Yes
• REACH Regulation: Compliant with current substance restrictions
• Product Class: A: Standard stock item
• Quality Standards: Manufactured to Siemens quality standards

Operating Characteristics

• Contact Operation: Mechanical operation linked to circuit breaker
• Position Indication: Direct indication of circuit breaker status
• Response Time: Instantaneous operation with circuit breaker
• Operating Temperature: Industrial temperature range
• Environmental Protection: Suitable for industrial environments
• Vibration Resistance: Robust construction for industrial applications

Replacement & Compatibility

• Replaces: 3RV1901-1A (previous generation)
• Equivalent Products: Comparable to Schneider Electric Square D GVAN11
• Compatibility: Designed specifically for 3RV2 series
• Note: Cannot be used with 3RV27 and 3RV28 circuit breakers (signaling switch applications)

Environmental Considerations

The device is designed for industrial environments and meets environmental compliance requirements. It complies with WEEE take-back obligations and RoHS substance restrictions for environmentally responsible manufacturing and disposal.

Limitations & Notes

• Maximum Quantity: A maximum of 4 auxiliary contacts with auxiliary switches can be attached per circuit breaker
• Compatibility: Auxiliary switches (2 contacts) and signaling switches can be attached individually or together
• Restriction: The signaling switch cannot be used with the 3RV27 and 3RV28 circuit breakers
