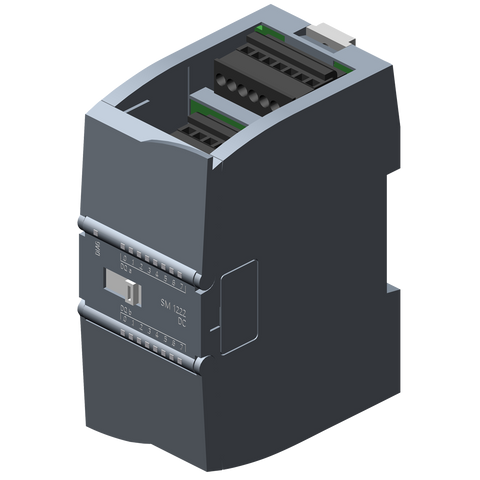

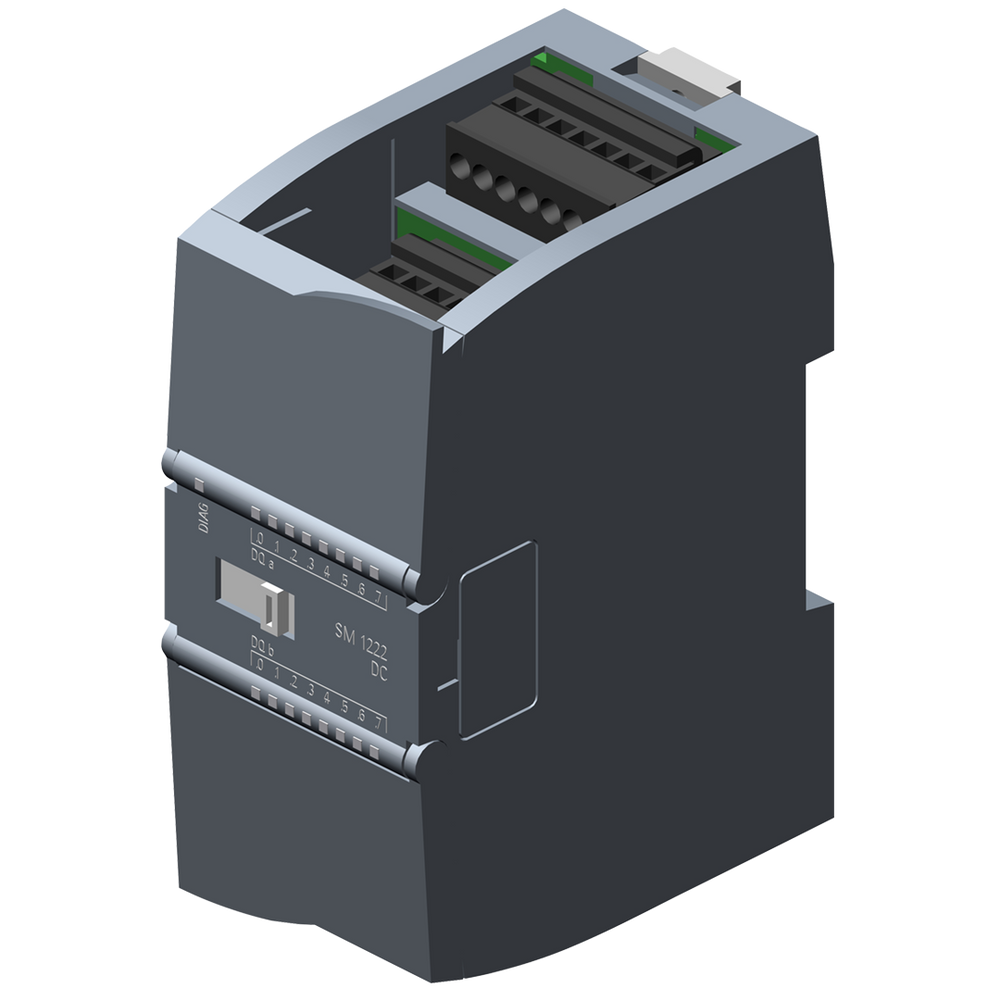

Siemens SM1222 Digital output, 16 DO, 24VDC, transistor 0.5A
Log in to view pricing
Sign in with your trade account to access live pricing and place orders. New to Rubicon Industrial Technology? Create an account in seconds.
Product Description
Product Overview
SIMATIC S7-1200 Digital Output Module SM 1222 - A high-performance 16-channel digital output module designed for industrial automation applications. This transistor-based output module provides reliable 24V DC switching capabilities with 0.5A current capacity per channel, making it ideal for controlling various industrial loads and actuators.
Key Features
16 Digital Outputs - Provides 16 independent digital output channels for comprehensive control applications
24V DC Operation - Operates on standard 24V DC supply voltage with permissible range of 20.4-28.8V DC
Transistor Output Technology - Features robust transistor outputs with 0.5A continuous current capacity per channel
Compact Design - Space-efficient module design with dimensions of 100mm (H) x 75mm (D) optimized for DIN rail mounting
Flexible Connection - Equipped with screw/spring clamp terminals for secure and reliable electrical connections
Technical Specifications
Supply Voltage: 24V DC (permissible range: 20.4-28.8V DC)
Output Type: Transistor
Current Rating: 0.5A per output
Number of Outputs: 16
Connection Type: Screw/spring clamp connection
Mounting: DIN rail (35mm)
Protection Rating: IP20
Time Delay: 0.05 milliseconds
Operating Temperature: -20°C to +60°C
Dimensions: 100mm (H) x 75mm (D) x 88mm (W)
Net Weight: 0.198 kg
Country of Origin: Germany
Compliance & Certifications
RoHS Compliance - Fully compliant with RoHS directive since March 15, 2013
ATEX Certification - Gas explosion protection category 3G
Export Control: AL: N / ECCN: 9N9999
WEEE Compliance - Subject to take-back obligation under WEEE directive (2012/19/EU)
Applications
Ideal for industrial automation systems requiring multiple digital output control including:
- Motor control and actuation
- Valve and solenoid operation
- Indicator lights and alarms
- Process control equipment
- Manufacturing automation systems
Compatibility
Designed for seamless integration with SIMATIC S7-1200 controller systems and compatible with TIA Portal programming environment.

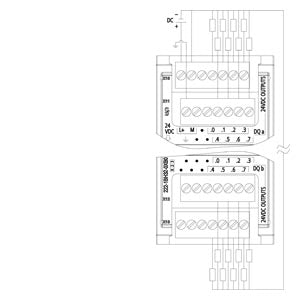

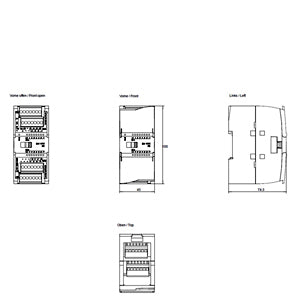

Download existing graphical data for this product:
Additional Information
| IP Rating | IP20 |
| Country of Origin | Germany |
| Compliance/Certifications | CE mark / cULus / CSA approval / FM approval / KC approval / Marine Approval / RCM / UL approval |
| Temperature: Operating | -20°C to 60°C (for horizontal installation) / -20°C to 50°C (for vertical installation) |
| Part Depth (mm) | 75mm |
| Part Width (mm) | 45mm |
| Part Length (mm) | 150 000mm - 500 000mm |
| Part Height (mm) | 100mm |
| Weight (g) | 220g |
| Packaging size / unit | pc(s) |
| Type of Voltage | DC |
| Supply Voltage | 24 VDC |
