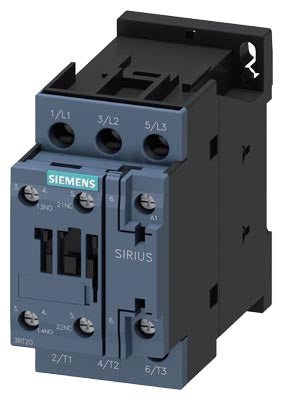

Siemens 400V AC contactor, 3-pole, size S0, 1NO+1NC, 7.5kW
View on Siemens 📄 Datasheet
Siemens

Siemens 400V AC contactor, 3-pole, size S0, 1NO+1NC, 7.5kW Part number 3RT2025-1AV00

EAN / Barcode 4011209839298
Product Type Control Panel
Product Class Power contactor, AC switching
Category Contactors and Motor Protection
Sub-category Contactor
ETIM Class Power contactor, AC switching
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Power Contactor

The SIRIUS 3RT2 power contactor is designed for switching motors with high contact reliability in a compact design.

Technical details:

  • AC-3e/AC-3
  • 17 A
  • 7.5 kW / 400 V
  • 3-pole
  • 400 V AC
  • 50 Hz
  • Auxiliary contacts: 1 NO + 1 NC
  • Screw terminal
  • Size: S0

Customer benefits:

  • Part of the modular SIRIUS system with optimally coordinated products
  • Convincing performance with compact design and high contact reliability
  • Combination with a variety of other components in the load feeder
  • Many device combinations factory tested
  • Best connection to the automation level for every application (parallel, via ASi or IO-Link)
  • Integrated auxiliary switches reduce design complexity
  • Front-panel terminals simplify wiring
  • Climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA)
  • IE3/IE4-ready
  • Available in various sizes and wide performance range with AC and DC operation
  • Fast, maintenance-free, and vibration-proof connection with spring-type terminals
  • Standardized comprehensive range of accessories, such as auxiliary switches and auxiliary releases
  • Available link modules, function modules, and SIRIUS 3RV29 infeed system reduce wiring expense
  • Simple, efficient, and always up to date - SIRIUS modular system

Technical Specifications

Depth97 mm
Height85 mm
Modular versionYes
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact1
Number of normally open contacts as main contact3
Operating voltage AC 50 Hz690 V
Operating voltage AC 60 Hz690 V
Rated control supply voltage AC 50 Hz400 V
Rated operation current Ie at AC-1, 400 V40 A
Rated operation current Ie at AC-3, 400 V17 A
Rated operation current Ie at AC-4, 400 V15.5 A
Rated operation power at AC-3, 400 V7.5 kW
Rated operation power NEMA7.354988 kW
Type of electrical connection of main circuitScrew connection
Voltage type for actuatingAC
Width45 mm
View complete specifications on Siemens
