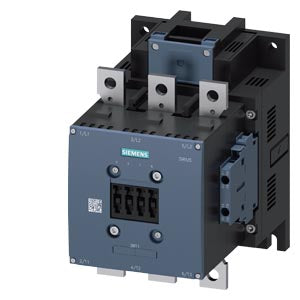

Product Image
View on Siemens 📄 Datasheet
Siemens

Siemens Power contactor, 3-pole, size S10, 2NO + 2NC, 132kW Part number 3RT1065-6AP36

EAN / Barcode 4011209507937
Product Type Control Panel
Product Class Power contactor, AC switching
Category Contactors and Motor Protection
Sub-category Contactor
ETIM Class Power contactor, AC switching
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD🌱 EcoTech Profile

Product Description

Power Contactor

The SIRIUS 3RT1 power contactor is designed for switching motors with high contact reliability and compact design.

Technical details:

  • Type: power contactor
  • AC-3e/AC-3: 265 A
  • Power: 132 kW / 400 V AC (50-60 Hz)
  • DC Uc: 220-240 V
  • 3-pole
  • Auxiliary contacts: 2 NO + 2 NC
  • Drive: conventional
  • Main circuit: busbar
  • Control and auxiliary circuit: screw terminal
  • Climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA)
  • IE3/IE4-ready
  • Available with spring-loaded terminals for fast, maintenance-free and vibration-proof connection

Customer benefits:

  • Optimally coordinated products within the SIRIUS modular system
  • Convincing performance from a compact design
  • Can be combined with a variety of other components in the load feeder
  • Best connection to the automation level for every application (direct or via PLC input)
  • Pre-installed auxiliary switches reduce the complexity of design
  • Available in various sizes and wide performance range
  • Simple, efficient and always up to date - SIRIUS modular system
  • A wide range of accessories available, including wiring kits

Technical Specifications

Depth202 mm
Height210 mm
Modular versionYes
Number of auxiliary contacts as normally closed contact2
Number of auxiliary contacts as normally open contact2
Number of normally open contacts as main contact3
Operating voltage AC 50 Hz1000 V
Operating voltage AC 60 Hz1000 V
Rated control supply voltage AC 50 Hz240 V
Rated control supply voltage AC 60 Hz240 V
Rated control supply voltage DC240 V
Rated operation current Ie at AC-1, 400 V330 A
Rated operation current Ie at AC-3, 400 V265 A
Rated operation current Ie at AC-4, 400 V230 A
Rated operation power at AC-3, 400 V132 kW
Rated operation power at AC-4, 400 V132 kW
Rated operation power NEMA147.09976 kW
Type of electrical connection of main circuitRail connection
Voltage type for actuatingAC/DC
Width145 mm
Part Width265 mmmm
Part Height196 mmmm
Part Depth234 mmmm
Weight6540 gg
Country of OriginGermany
View complete specifications on Siemens
