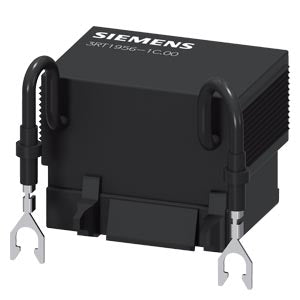

Siemens Surge suppressor, RC element with screw terminal
View on Siemens 📄 Datasheet
Siemens

Siemens Surge suppressor, RC element with screw terminal Part number 3RT1956-1CD00

EAN / Barcode 4011209456785
Product Type Control Panel
Product Class Surge protection module
ETIM Class Surge protection module
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD

Product Description

Surge suppressor (RC element) for 3RT1 S6, S10, S12

Enhance your system's protection with the surge suppressor designed for versatile application with 3RT1 S6, S10, S12 models.

Technical details:

  • Type: Surge suppressor (RC element)
  • Compatibility: 3RT1 S6, S10, S12
  • Terminal type: Screw terminal (drive)
  • Voltage range: 127...240 V AC
  • Voltage range: 150...250 V DC

Customer benefits:

  • Simple and efficient solution
  • Always up to date with the SIRIUS modular system

Technical Specifications

country_of_originCzech Republic
descriptionSurge suppressor (RC element) for 3RT1 S6, S10, S12 with screw terminal (drive) 127...240 V AC, 150...250 V DC
FunctionRC-element
Operating voltage AC 50 Hz127 V
Operating voltage AC 60 Hz240 V
Operating voltage DC250 V
Part Depth (mm)28,00mm
Part Height (mm)70,00mm
Part Width (mm)35,00mm
Type of VoltageAC
Weight (g)0,030 Kg
View complete specifications on Siemens
