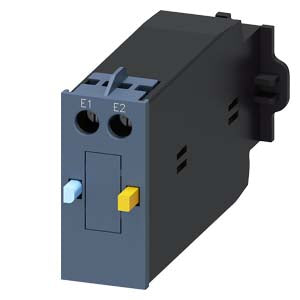

Siemens Mechanical latch for contactors 3RT202, 3RT232, 3RT252 Part number 3RT2926-3AP31

Product Overview

Mechanical latch, 230 V AC/DC, for contactors 3RT202, 3RT232, 3RT252. Article Number: 3RT2926-3AP31.

Key Specifications

Electrical Ratings:

• Operating voltage: 230 V AC/DC
• Function: Mechanical latching mechanism
• Application: Contactor latching and holding

Compatibility:

• Designed for contactors 3RT202 series
• Compatible with contactors 3RT232 series
• Compatible with contactors 3RT252 series
• Provides mechanical latching functionality

Construction Features:

• Mechanical latch design for reliable operation
• AC/DC voltage compatibility
• Direct mounting to compatible contactors
• Maintains contactor position without continuous power

Physical Specifications

• Net weight: 0.125 kg
• Packaging dimensions: 50 × 51.5 × 99 mm
• Country of origin: Germany

Product Identifiers

• EAN: 4011209736801
• UPC: 662643920895

Compliance Information

• RoHS compliant since 01.10.2009
• WEEE (2012/19/EU) Take-Back Obligation: Yes

REACH Regulation Information This product contains the following substance from the candidate list in concentrations higher than 0.1% weight by weight (w/w):

• Lead

Based on currently available information, this substance does not pose any risk if the article is used as intended (including disposal). Please refer to product documentation for additional details.

Download existing graphical data for this product:

Product Datasheet

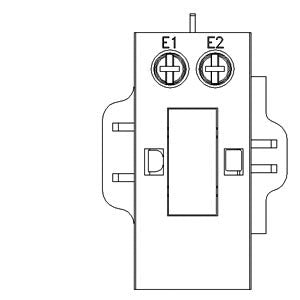

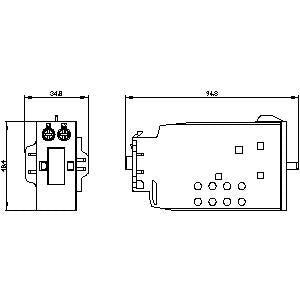

CAD Drawings & Technical Documentation

Certificates
