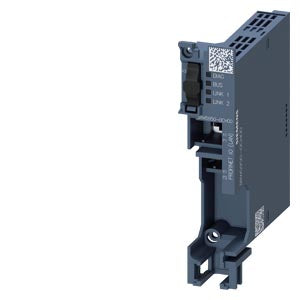

Siemens Communication module Profinet high-feature, inte. switch Part number 3RW5950-0CH00

Product Overview

Communication module PROFINET High-Feature with integrated switch. This advanced communication module provides seamless PROFINET connectivity for industrial automation systems, featuring an integrated switch for enhanced network topology flexibility and supporting high-speed data transmission up to 100 Mbps.

Technical Specifications

Article Number: 3RW5950-0CH00

Communication Features:

• Protocol: PROFINET
• Type: High-Feature communication module
• Integrated switch: Yes
• Data rate: Up to 100 Mbps
• Compatible with: PROFINET IO, PROFINET CBA, PROFINET Device Management
• Network connections: Up to 8 PROFINET devices

Functionality:

• Communication and measuring function
• PROFINET High-Feature capabilities
• Network topology flexibility
• High-speed industrial communication
• Reliable data transmission
• Interference resistance

Physical Properties:

• Net weight: 0.124 kg
• Packaging dimensions: 106.00 x 134.00 x 45.00 mm
• Packaging quantity: 1 piece
• Country of origin: Czech Republic

Product Identifiers:

• EAN: 4047621044194
• UPC: Not available

Compliance & Environmental:

• RoHS Compliance: Since 11.02.2019
• WEEE Take-Back Obligation: Yes
• REACH Regulation: Contains lead monoxide (lead oxide) and 4,4'-isopropylidenediphenol (Bisphenol A, BPA) in concentrations higher than 0.1% weight by weight. Based on current information, these substances do not pose risk when used as intended.

Classifications:

• eClass: 27-37-13-92
• ETIM: EC002498
