Siemens

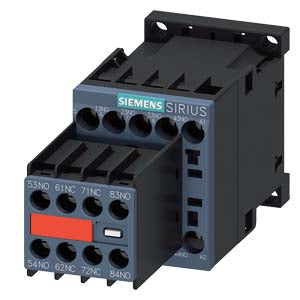

Siemens Contactor relay, screw, size S00, 6NO + 2NC, 24VDC Part number 3RH2262-1BB40

Product Type Control Panel
Category Contactors and Motor Protection
Sub-category Contactor
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

Contactor relay

The SIRIUS 3RH2 contactor relay is designed for switching control signals in the control circuit with enhanced reliability and safety features.

Technical details:

  • 6 NO + 2 NC
  • 24 V DC
  • Screw terminal
  • Frame size S00
  • Captive auxiliary switch
  • Positively driven operation for safety applications
  • Climate-resistant
  • High contact reliability
  • Suitable for worldwide use (e.g. IEC and UL/CSA)
  • Available with AC or DC operation
  • 4-pole design, extendable up to 8 poles
  • Snap-on auxiliary switches
  • Compatible with 3RT2 contactors in sizes S00 to S3
  • Replaces 3RH1 series

Customer benefits:

  • Standard-compliant terminal designations
  • Reliable and time-saving connection technology
  • Simultaneous switching of several auxiliary circuits
  • Extensive range of accessories available
  • Simple, efficient, and always up to date with the SIRIUS modular system

Technical Specifications

IP RatingIP20
Country of OriginGermany
Compliance/CertificationsIEC 61508
Temperature: Operating-25°C to 60°C
Part Depth (mm)117mm
Part Width (mm)45mm
Part Height (mm)57.5mm
Packaging size / unit pc(s)
Connection Typescrew-type terminals
Max Frequency1 000 1/h
Current Rating / Rated Current0.416666666666667
Operating Periodmechanical service life (operating cycles) of contactor typical 10 000 000
View complete specifications on Siemens
