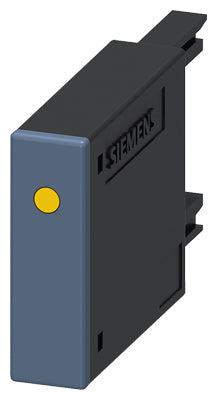

Siemens Surge suppressor, varistor with LED, 24 - 48VAC Part number 3RT2916-1JJ00

Product Overview

Surge suppressor, varistor with LED, 24-48 V AC, 50/60 Hz, 12-24 V DC, for contactors 3RT2.1 and auxiliary contactors 3RH2. Article Number: 3RT2916-1JJ00.

Key Specifications

Electrical Ratings:

• AC voltage range: 24-48 V AC, 50/60 Hz
• DC voltage range: 12-24 V DC
• Function: Surge suppression and voltage protection

Compatibility:

• Designed for contactors 3RT2.1 series
• Compatible with auxiliary contactors 3RH2 series
• Provides coil protection against voltage spikes

Construction Features:

• Varistor technology with integrated LED indicator
• LED provides visual status indication
• Compact design for easy integration
• Direct mounting to compatible contactors

Physical Specifications

• Net weight: 0.015 lb
• Packaging dimensions: 1.22 × 2.205 × 0.394 in
• Country of origin: Czech Republic

Product Identifiers

• EAN: 4011209740082
• UPC: 662643918502

Compliance Information

• RoHS compliant since 10/01/2009
• WEEE (2012/19/EU) Take-Back Obligation: Yes
• Returnable: Yes

REACH Regulation Information This product contains the following substance from the candidate list in concentrations higher than 0.1% weight by weight (w/w):

• Lead

Based on currently available information, this substance does not pose any risk if the article is used as intended (including disposal). Please refer to product documentation for additional details.
