Siemens Contactor relay, size S00, screw, 2NO + 2NC, 110VAC
View on Siemens 📄 Datasheet
Siemens

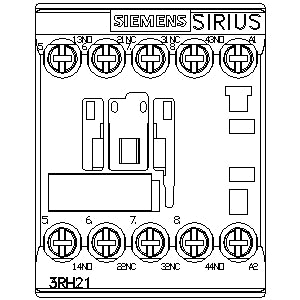

Siemens Contactor relay, size S00, screw, 2NO + 2NC, 110VAC Part number 3RH2122-1AF00

EAN / Barcode 4011209847569
Product Type Control Panel
Product Class Contactor relay
Category Contactors and Motor Protection
Sub-category Contactor
ETIM Class Contactor relay
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD

Product Description

Contactor relay

The SIRIUS 3RH2 contactor relay is designed for switching control signals in the control circuit.

Technical details:

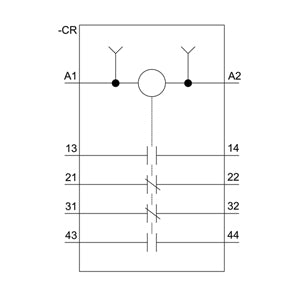

  • 2 NO + 2 NC
  • 110 V AC
  • 50/60 Hz
  • Screw terminal
  • Frame size S00

Customer benefits:

  • Standard-compliant terminal designations
  • Reliable and time-saving connection technology
  • Multiplication of outputs for simultaneous switching of several auxiliary circuits
  • Positively driven operation for safety applications
  • Climate-resistant with high contact reliability
  • Globally suitable due to various approvals (e.g. IEC and UL/CSA)
  • Available with AC or DC operation and screw or spring-loaded terminals
  • 4-pole design extendable up to 8 poles with snap-on auxiliary switches
  • Compatible with the extensive range of accessories for the 3RT2 contactors
  • Replaces the well-proven 3RH1 series
  • Part of the simple, efficient, and always up-to-date SIRIUS modular system

Technical Specifications

Compliance/StandardsIEC 61508-2, IEC 61508, IEC 60529, IEC 60947-5, IEC 60068-2, IEC 81346-2
Connection type auxiliary circuitScrew connection
country_of_originGermany
Depth73 mm
descriptioncontactor relay, 2 NO + 2 NC, 110 V AC, 50/60 Hz, screw terminal, frame size S00
Height57.5 mm
IP RatingIP20
IP Rating DetailedIP20 touch protection on the front according to IEC 60529 finger
Mounting methodScrew
Number of auxiliary contacts as normally closed contact2
Number of auxiliary contacts as normally open contact2
Part Depth (mm)77,50mm
Part Height (mm)61,50mm
Part Width (mm)50,00mm
Rated control supply voltage AC 50 Hz110 V
Rated control supply voltage AC 60 Hz110 V
Rated operation current Ie, 400 V3 A
Type of VoltageAC
Voltage type for actuatingAC
Weight (g)0,232 Kg
Width45 mm
View complete specifications on Siemens
