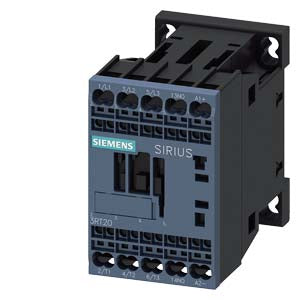

Siemens Power contactor, 3-pole, 1 NO, 24VDC, 7A Siemens
View on Siemens 📄 Datasheet
Siemens

Siemens Power contactor, 3-pole, 1 NO, 24VDC, 7A Part number 3RT2015-2BB41

EAN / Barcode 4011209785243
Product Type Control Panel
Product Class Power contactor, AC switching
Category Contactors and Motor Protection
Sub-category Contactor
ETIM Class Power contactor, AC switching
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Power Contactor

The SIRIUS 3RT2 power contactor is designed for switching motors with high reliability and compact design.

Technical details:

  • AC-3e/AC-3
  • 7 A
  • 3 kW / 400 V
  • 3-pole
  • 24 V DC
  • Auxiliary contacts: 1 NO
  • Spring-loaded terminal
  • Size: S00

Customer benefits:

  • Convincing performance from a compact design with high contact reliability.
  • Can be combined with a variety of other components in the load feeder.
  • Factory tested device combinations.
  • Best connection to the automation level for every application (parallel, via ASi or IO-Link).
  • Integrated auxiliary switches reduce the complexity of your design.
  • Front-panel terminals simplify the wiring.
  • Climate-resistant and approved for worldwide use (e.g. IEC and UL/CSA).
  • IE3/IE4-ready.
  • Available in various sizes and in a wide performance range with AC and DC operation.
  • Available with spring-type terminals for fast, maintenance-free and vibration-proof connection.
  • Comprehensive range of standardized accessories for all sizes.
  • Available link modules, function modules, and SIRIUS 3RV29 infeed system reduce wiring expense.
  • Simple, efficient, and always up to date - SIRIUS modular system.

Technical Specifications

Depth73 mm
Height70 mm
Modular versionYes
Number of auxiliary contacts as normally open contact1
Number of normally open contacts as main contact3
Operating voltage AC 50 Hz690 V
Operating voltage AC 60 Hz690 V
Rated control supply voltage DC24 V
Rated operation current Ie at AC-1, 400 V18 A
Rated operation current Ie at AC-3, 400 V7 A
Rated operation current Ie at AC-4, 400 V6.5 A
Rated operation power at AC-3, 400 V3 kW
Rated operation power at AC-4, 400 V3 kW
Rated operation power NEMA2.2064964 kW
Type of electrical connection of main circuitSpring clamp connection
Voltage type for actuatingDC
Width45 mm
Part Width50 mm
Part Height73 mm
Part Depth77 mm
Weight316 g
Country of OriginGermany
View complete specifications on Siemens

Videos & Media

Product Overview

Overview, features and application examples
