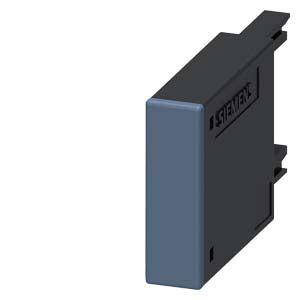

Siemens Surge suppressor, varistor, size S00, 24 - 70VDC Part number 3RT2916-1BB00

Product Overview

Surge suppressor, varistor, 24-48 V AC, 50/60 Hz, 24-70 V DC, for contactors 3RT2.1 and auxiliary contactors 3RH2. Article Number: 3RT2916-1BB00.

Key Specifications

Electrical Ratings:

• AC voltage range: 24-48 V AC, 50/60 Hz
• DC voltage range: 24-70 V DC
• Function: Surge suppression and voltage protection

Compatibility:

• Designed for contactors 3RT2.1 series
• Compatible with auxiliary contactors 3RH2 series
• Provides coil protection against voltage spikes

Construction Features:

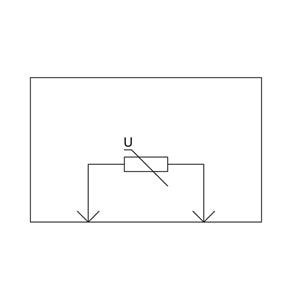

• Varistor technology for reliable surge protection
• Compact design for easy integration
• Direct mounting to compatible contactors

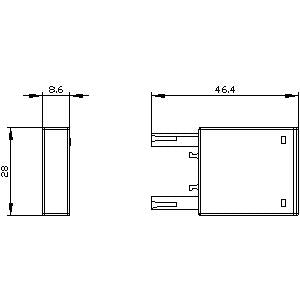

Physical Specifications

• Net weight: 0.006 kg
• Packaging dimensions: 31 × 56 × 10 mm
• Country of origin: Czech Republic

Product Identifiers

• EAN: 4011209739949
• UPC: 662643918373

Compliance Information

• RoHS compliant since 01.10.2009
• WEEE (2012/19/EU) Take-Back Obligation: Yes

REACH Regulation Information This product contains the following substance from the candidate list in concentrations higher than 0.1% weight by weight (w/w):

• Lead

Based on currently available information, this substance does not pose any risk if the article is used as intended (including disposal). Please refer to product documentation for additional details.

Download existing graphical data for this product:

Product Datasheet

CAD Drawings & Technical Documentation

Certificates
