Siemens Power contactor, 3-pole, size S2, 1NO + 1NC, 65A
View on Siemens 📄 Datasheet
Siemens

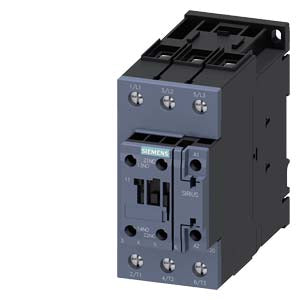

Siemens Power contactor, 3-pole, size S2, 1NO + 1NC, 65A Part number 3RT2037-1AB00

EAN / Barcode 4011209940222
Product Type Control Panel
Product Class Power contactor, AC switching
Category Contactors and Motor Protection
ETIM Class Power contactor, AC switching
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Product Overview

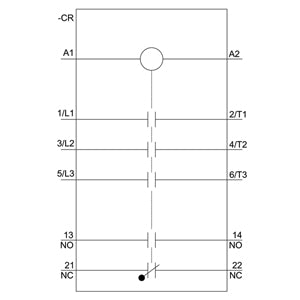

Power contactor, AC-3e/AC-3, 65 A, 30 kW / 400 V, 3-pole, 24 V AC, 50 Hz, auxiliary contacts: 1 NO + 1 NC, screw terminal, size: S2. Article Number: 3RT2037-1AB00.

Key Specifications

Electrical Ratings:

  • Current rating: 65 A (AC-3e/AC-3)
  • Power rating: 30 kW / 400 V
  • Control voltage: 24 V AC, 50 Hz
  • Poles: 3-pole
  • Auxiliary contacts: 1 NO + 1 NC

Construction Features:

  • Screw terminal connections
  • Frame size: S2
  • Suitable for industrial applications

Physical Specifications

  • Net weight: 0.994 kg
  • Packaging dimensions: 62 × 122.5 × 142 mm
  • Country of origin: Germany

Product Identifiers

  • EAN: 4011209940222
  • UPC: 887621917128

Compliance Information

  • RoHS compliant since 01.10.2014
  • WEEE (2012/19/EU) Take-Back Obligation: Yes

REACH Regulation Information There is currently no information on SVHC (Substances of Very High Concern) from the supply chain and established procedures for screening products for Substances of Very High Concern. Products are regularly compared with information from upstream users regarding substances indicated in the candidate list in accordance with REACH regulation requirements. Information will be updated as new findings become available.

Download existing graphical data for this product:

Product Datasheet

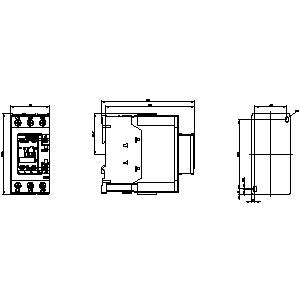

CAD Drawings & Technical Documentation

Certificates

Technical Specifications

Compliance/StandardsIEC 61508-2, EN 60947-1, IEC 60947-4, IEC 61508, IEC 60529, IEC 60947-5, EN 60715, IEC 60068-2, IEC 81346-2
country_of_originGermany
Depth130 mm
descriptionpower contactor, AC-3e/AC-3, 65 A, 30 kW / 400 V, 3-pole, 24 V AC, 50 Hz, auxiliary contacts: 1 NO + 1 NC, screw terminal, size: S2
Height114 mm
IP RatingIP20
IP Rating DetailedIP20 touch protection on the front according to IEC 60529 finger
Modular versionYes
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact1
Number of normally open contacts as main contact3
Operating voltage AC 50 Hz690 V
Operating voltage AC 60 Hz690 V
Part Depth (mm)142,00mm
Part Height (mm)122,50mm
Part Width (mm)62,00mm
Rated control supply voltage AC 50 Hz24 V
Rated operation current Ie at AC-1, 400 V80 A
Rated operation current Ie at AC-3, 400 V65 A
Rated operation current Ie at AC-4, 400 V55 A
Rated operation power at AC-3, 400 V30 kW
Rated operation power NEMA36.77494 kW
Type of electrical connection of main circuitScrew connection
Type of VoltageAC
Voltage type for actuatingAC
Weight (g)0,994 Kg
Width55 mm
View complete specifications on Siemens

Videos & Media

Product Overview

Overview, features and application examples
