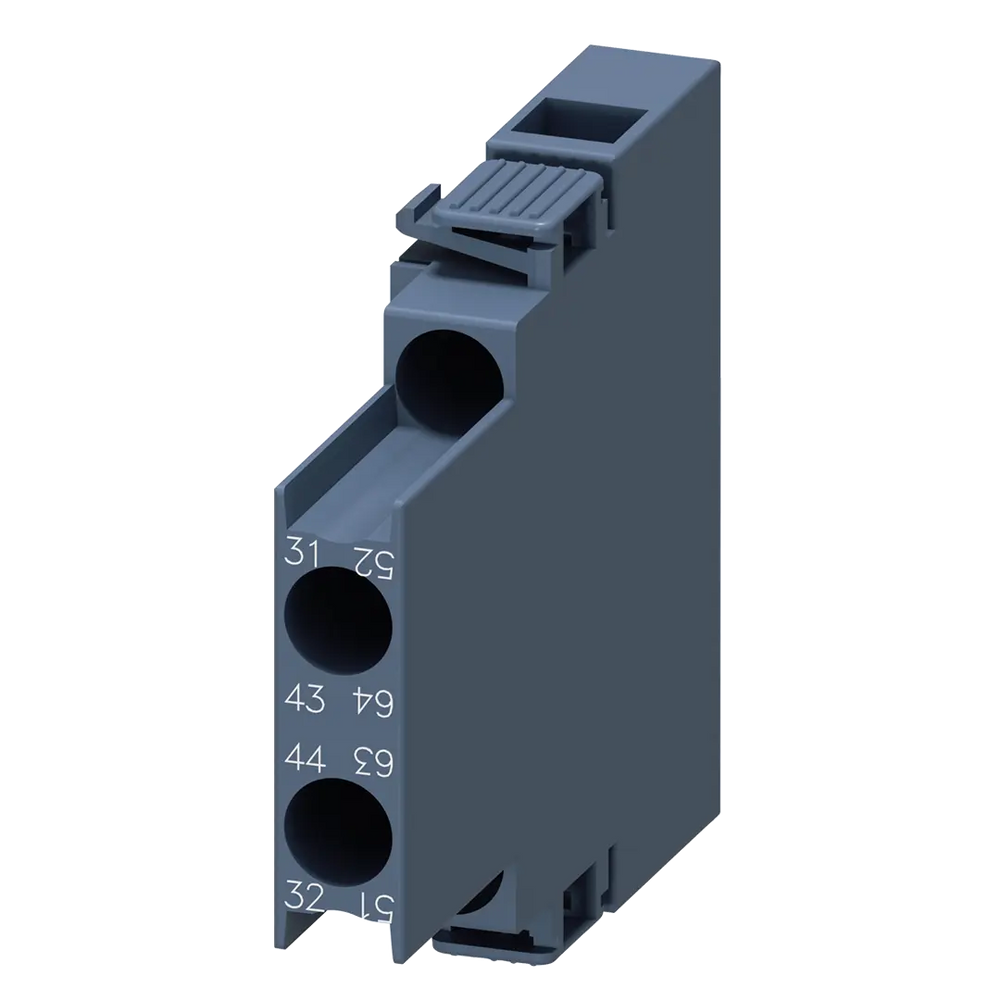

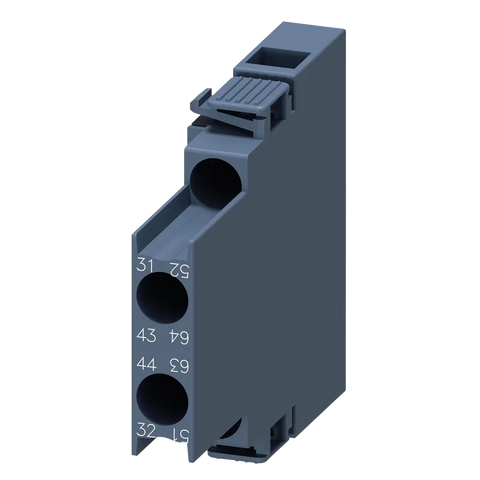

Siemens Auxiliary switch lateral, screw, 1NO + 1NC
Log in to view pricing
Sign in with your trade account to access live pricing and place orders. New to Rubicon Industrial Technology? Create an account in seconds.
Product Description
This auxiliary switch is designed for lateral mounting on contactors and relays. It features 1 NO and 1 NC contact, with screw terminals, and is suitable for use with 3RT2 and 3RH2 devices. It offers a mechanical service life of up to 10 million operating cycles.
Additional Information
| IP Rating | IP20 |
| Country of Origin | Germany |
| Temperature: Operating | -25°C to 60°C |
| Part Depth (mm) | 66mm |
| Part Width (mm) | 10mm |
| Part Height (mm) | 57.4mm |
| Weight (g) | 39g |
| Connection Style | Screw-type terminals |
| Mounting Type | Snap-on mounting |
| Operating Period | Product Lifecycle - PM300:Active Product |
Technical Documentation & Downloads
Additional Datasheet
Dimensional Drawing
Physical dimensions and measurements
Product Manual
Complete user documentation
Installation Guide
Step-by-step installation instructions
Selection Guide
Product selection assistance
Product Info Page
Official Siemens product page
Catalog Page
View in Siemens catalog
Product Configurator
Configure product options
Videos & Interactive Media
Product Media
Add Siemens videos or media manifest entries to showcase this product.
Interactive 3D CAD Model
🛠 Siemens 3D CAD Viewer Interactive
📄
Part Number: 3RH29211DA11
🌐
Source: Siemens PartCommunity
📥
Downloads: STEP, DWG, 3DS, and more formats available
Tip: Use your mouse to rotate, zoom, and pan the 3D model. Click "Open Full Screen" for additional download options including STEP, DWG, 3DS, and other CAD formats.
