Siemens Power contactor, 3-pole, 1NO + 1NC, size S0, 5.5kW
View on Siemens 📄 Datasheet
Siemens

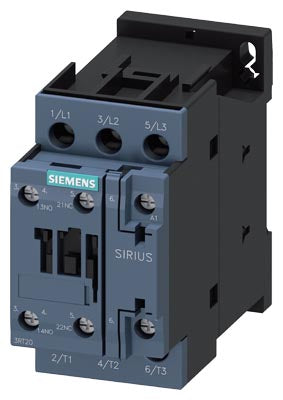

Siemens Power contactor, 3-pole, 1NO + 1NC, size S0, 5.5kW Part number 3RT2024-1AP00

Product Type Control Panel
Category Contactors and Motor Protection
Sub-category Contactor
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

Power Contactor

The SIRIUS 3RT2 power contactor is designed for switching motors with high reliability and compact design.

Technical details:

  • Type: power contactor
  • AC-3e/AC-3
  • Current: 12 A
  • Power: 5.5 kW / 400 V
  • Poles: 3-pole
  • Voltage: 230 V AC
  • Frequency: 50 Hz

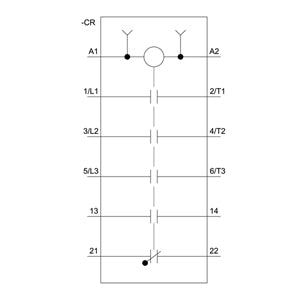

  • Auxiliary contacts: 1 NO + 1 NC
  • Terminal type: screw terminal
  • Size: S0
  • Standards: approved for worldwide use (e.g. IEC and UL/CSA), IE3/IE4-ready

Customer benefits:

  • Compact design with high contact reliability
  • Can be combined with a variety of other components in the load feeder
  • Factory tested combinations available
  • Integrated auxiliary switches reduce design complexity
  • Front-panel terminals simplify wiring
  • Climate-resistant
  • Available with spring-type terminals for fast and maintenance-free connection
  • Comprehensive range of accessories standardized for all sizes
  • Link modules and function modules reduce wiring expense
  • Part of a simple, efficient, and always up-to-date modular system

Technical Specifications

IP RatingIP20
Country of OriginGermany
Temperature: Operating-25°C to 60°C
Part Depth (mm)97mm
Part Width (mm)45mm
Part Height (mm)85mm
Packaging size / unit pc(s)
Connection Style1 NO + 1 NC / 3 Poles
Connection TypeScrew type terminals
Max Frequency300 1/h - 1000 1/h
Type of VoltageAC
Rated Operating Voltage690 VAC
Supply Voltage230 V at 50 Hz
Mounting TypeScrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Current Rating / Rated Current0.1 - 35 A
Operating Period10 000 000 cycles (contactor typical) / 5 000 000 (of the contactor with added electronically optimized auxiliary switch block typical) / 10 000 000 cycles (of the contactor with added auxiliary switch block typical) (Mechanical)
