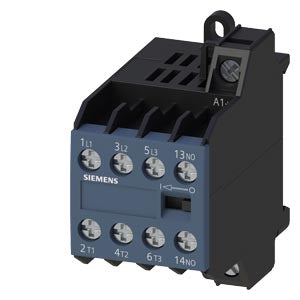

Siemens Power relay, screw, 3-pole, 4NO, 24VDC, 4kW

Product Overview

Power relay designed for AC-3 applications, delivering 8.4 A switching capacity at 4 kW / 400 V. This 3-pole relay operates with 24 V DC coil voltage and features 1 NO auxiliary contact with screw terminal connections.

Key Features

The 3TG10 power relays are engineered for applications requiring small, low-noise relays or miniature contactors. These units are ideal for simple controllers and applications that do not require an overload relay but need only one auxiliary switch. They provide higher switching power, elevated switching voltage, and extended service life compared to standard relays.

Technical Specifications

• Contact Configuration: 3-pole main contacts + 1 NO auxiliary contact
• Rated Current: 8.4 A (AC-3)
• Power Rating: 4 kW / 400 V
• Coil Voltage: 24 V DC
• Terminal Type: Screw terminals
• Overall Width: 36 mm compact design
• Protection Class: IP00
• Net Weight: 0.158 kg
• Package Dimensions: 131.00 x 187.00 x 70.00 mm

Applications

These contactors feature a compact design suitable for use in household appliances, distribution boards in offices and residential buildings, owing to their hum-free construction. They can be utilized in all areas where quiet operation and reliable switching performance are required.

Standards and Compliance

• EAN: 4011209045057
• UPC: 754554404639
• Country of Origin: Turkiye
• RoHS Compliance: Since 01.07.2006
• WEEE Take-Back Obligation: Yes

Physical Characteristics

• Packaging Quantity: 1 piece
• Quantity Unit: 1 piece
• Package Size Unit: MM
• Net Weight: 0.158 kg

Download existing graphical data for this product:

• Technical Datasheet (PDF)
• Product Support Documentation
• 3TG10 Series Product Family Information
