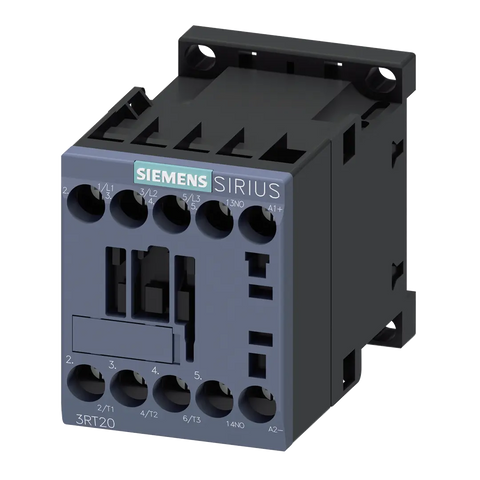

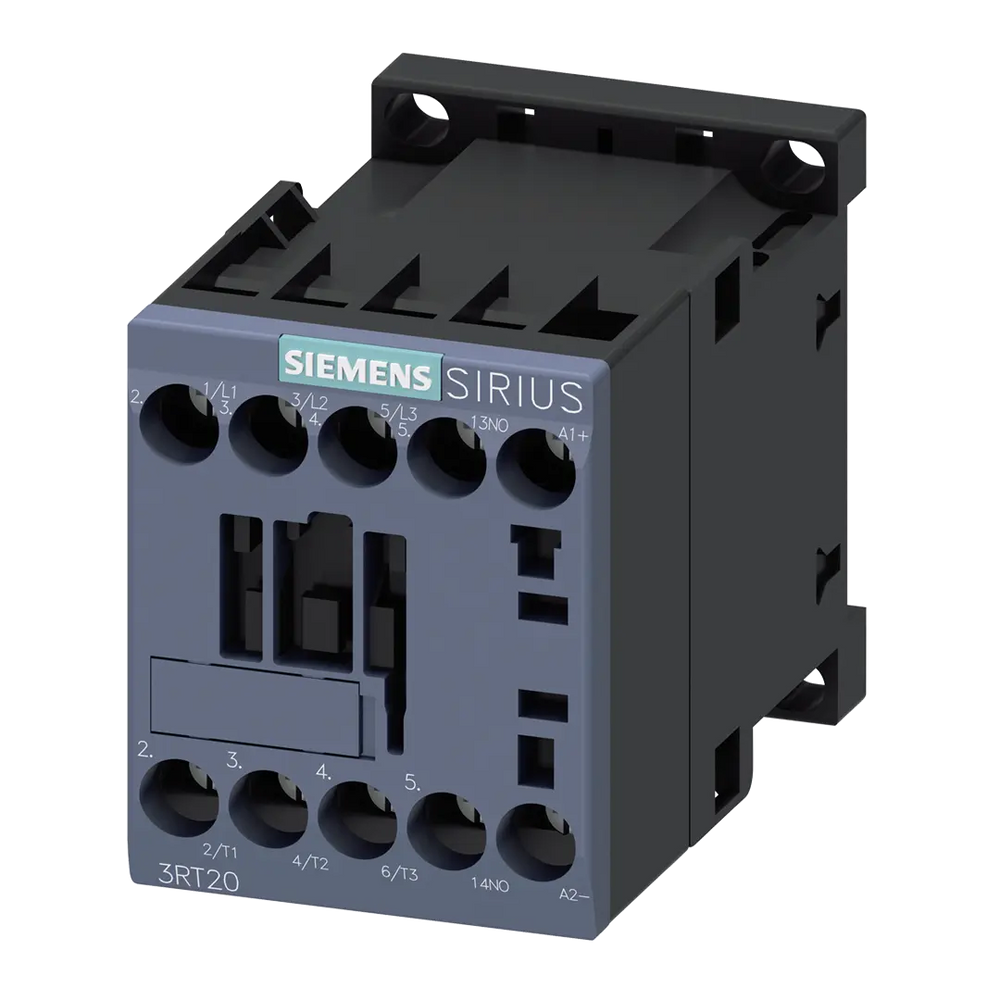

Siemens Power contactor, 3-pole, 24VDC, size S00, 3kW

SKU / Article No. 3RT2015-1BB41

Product Type Control Panel

Product Class Power contactor, AC switching

Category Contactors and Motor Protection

Sub-category Contactor

In Stock

View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

Product Overview

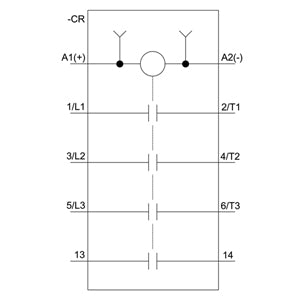

Power contactor, AC-3e/AC-3, 7 A, 3 kW / 400 V, 3-pole, 24 V DC, auxiliary contacts: 1 NO, screw terminal, size: S00

This compact power contactor (Article Number: 3RT2015-1BB41) is designed for reliable switching of three-phase motors and electrical loads in demanding industrial applications. The device features a 3-pole configuration with AC-3e/AC-3 rating of 7 A at 3 kW / 400 V, making it suitable for small to medium-power motor control applications. With 24 V DC coil voltage and Size S00 construction, this contactor provides dependable switching performance with screw terminal connections for secure wiring.

Key Features

3-pole power contactor for three-phase motor control
AC-3e/AC-3 rating: 7 A, 3 kW / 400 V for reliable small to medium-power motor switching
24 V DC coil voltage for DC control system compatibility
Size S00 construction for compact industrial applications
Screw terminal connections for secure and reliable wiring
Auxiliary contacts: 1 NO for control and feedback functions
Compact design suitable for space-constrained applications
Robust construction for demanding industrial environments
High switching reliability for critical applications
SIRIUS 3RT2 series representing the latest contactor technology

Technical Specifications

Net Weight: 0.291 kg
Packaging Dimensions: 50.00 x 61.50 x 77.50 mm
Packaging Quantity: 1 piece
Quantity Unit: 1 Piece
Country of Origin: Germany
Rated Current: 7 A (AC-3e/AC-3)
Power Rating: 3 kW / 400 V
Coil Voltage: 24 V DC
Pole Configuration: 3-pole
Auxiliary Contacts: 1 NO
Size: S00
Terminal Type: Screw terminals
EAN: 4011209780774
UPC: 662643908909

Applications

Small to medium-power motor control up to 3 kW in industrial applications
Pump control systems for water treatment and distribution
Fan motor switching in HVAC systems
Conveyor motor control in light to medium material handling
Machine tool applications requiring reliable motor switching
Process control systems with small to medium-power motor-driven equipment
Manufacturing equipment with three-phase motor requirements
Automation systems requiring dependable switching for standard loads
Building automation systems with motor control needs
DC control applications requiring 24V DC operation

Installation Benefits

Size S00 construction for compact applications
Secure connections with screw terminal design
Reliable operation in demanding industrial environments
Easy installation with standard mounting methods
Professional appearance maintaining system aesthetics
DC control compatibility with 24V DC control systems
Compact footprint for space-efficient installations
Auxiliary contact integration for control and feedback functions

Power Contactor Advantages

Enhanced motor protection through reliable switching operation
Optimal switching capacity for AC-3e/AC-3 motor loads up to 3 kW
Long operational life with robust contact design
Electrical isolation between control and power circuits
Overload handling suitable for motor starting applications
Compact S00 design for space-constrained applications
Proven reliability in small to medium-power motor control
Integrated auxiliary contacts for control circuit integration

Compatibility

24 V DC control systems for modern automation
Three-phase motor applications up to 3 kW
Industrial control panels with Size S00 mounting
Motor control centers requiring compact contactors
Process control systems with DC control voltage
Standard DIN rail and panel mounting systems
SIRIUS 3RT2 contactor family for system integration
Building automation systems with DC motor control requirements

Product Classifications

eClass: 27-37-10-03
ETIM: EC000066
UNSPSC: 39-12-15-29

Compliance & Certifications

Export Control: AL: N / ECCN: N
RoHS Compliance: Since 01.10.2009
WEEE Take-Back Obligation: Yes

REACH Compliance This product complies with REACH regulation requirements. Currently, there is no information on SVHC (Substances of Very High Concern) from the supply chain. The product is regularly compared with upstream user information regarding substances indicated in the candidate list in accordance with REACH regulation requirements.

Download existing graphical data for this product:

For technical documentation and CAD files, please visit:

Official Product Datasheet (PDF)
Siemens Industry Mall Product Page
Siemens PARTcommunity for 3D CAD Models
Siemens Technical Support Center for technical documentation requests

Technical Specifications

IP Rating	IP20
Country of Origin	Germany
Temperature: Operating	-25°C to 60°C
Part Depth (mm)	73mm
Part Width (mm)	45mm
Part Height (mm)	58mm
Packaging size / unit	pc(s)
Connection Style	1 NO / 3 Poles
Connection Type	Screw type terminals
Max Frequency	250 1/h - 1000 1/h
Type of Voltage	DC
Rated Operating Voltage	690 VAC
Supply Voltage	24 V
Mounting Type	Screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Current Rating / Rated Current	0.14 - 18 A
Operating Period	10 000 000 cycles (contactor typical) / 5 000 000 (of the contactor with added electronically optimized auxiliary switch block typical) / 10 000 000 cycles (of the contactor with added auxiliary switch block typical) (Mechanical)
