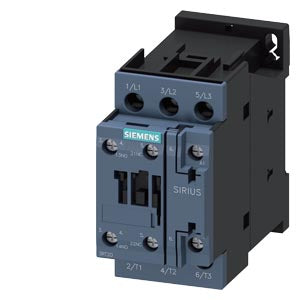

Siemens 230V AC contactor, 3-pole, size S0, 1NO+1NC, 7.5kW Siemens
View on Siemens 📄 Datasheet
Siemens

Siemens 230V AC contactor, 3-pole, size S0, 1NO+1NC, 7.5kW Part number 3RT2025-1AL20

EAN / Barcode 4011209832442
Product Type Control Panel
Product Class Power contactor, AC switching
Category Contactors and Motor Protection
Sub-category Contactor
ETIM Class Power contactor, AC switching
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Power Contactor

The SIRIUS 3RT2 power contactor is designed for reliably switching motors with a compact design and high contact reliability.

Technical details:

  • Type: power contactor
  • Applications: AC-3e/AC-3
  • Rated current: 17 A
  • Rated power: 7.5 kW / 400 V
  • Number of poles: 3-pole
  • Control voltage: 230 V AC
  • Frequency: 50/60 Hz
  • Auxiliary contacts: 1 NO + 1 NC
  • Connection type: screw terminal
  • Size: S0
  • Climate-resistant: approved for worldwide use (e.g. IEC and UL/CSA)
  • IE3/IE4-ready: yes

Customer benefits:

  • Convincing performance from a compact design with high contact reliability.
  • Can be combined with a variety of other components in the load feeder.
  • Many device combinations have been factory tested.
  • Best connection to the automation level for every application (parallel, via ASi or IO-Link).
  • Integrated auxiliary switches reduce the complexity of design.
  • Front-panel terminals simplify the wiring.
  • Available in various sizes and a wide performance range with AC and DC operation.
  • All devices available with spring-type terminals for fast, maintenance-free, and vibration-proof connection.
  • Comprehensive range of standardized accessories for all sizes.
  • Available link modules, function modules, and SIRIUS 3RV29 infeed system considerably reduce wiring expense.
  • Simple, efficient, and always up to date - SIRIUS modular system.

Technical Specifications

Depth97 mm
Height85 mm
Modular versionYes
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact1
Number of normally open contacts as main contact3
Operating voltage AC 50 Hz690 V
Operating voltage AC 60 Hz690 V
Rated control supply voltage AC 50 Hz230 V
Rated control supply voltage AC 60 Hz230 V
Rated operation current Ie at AC-1, 400 V40 A
Rated operation current Ie at AC-3, 400 V17 A
Rated operation current Ie at AC-4, 400 V15.5 A
Rated operation power at AC-3, 400 V7.5 kW
Rated operation power NEMA7.354988 kW
Type of electrical connection of main circuitScrew connection
Voltage type for actuatingAC
Width45 mm
Part Width54 mm
Part Height92 mm
Part Depth105 mm
Weight405 g
Country of OriginGermany
View complete specifications on Siemens
