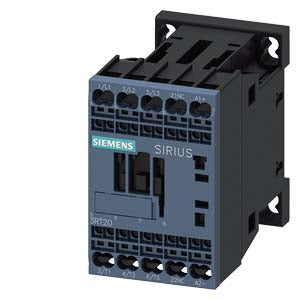

Siemens Power contactor, spring, 3-pole, 1NC, 24VDC size S00 Siemens
View on Siemens 📄 Datasheet
Siemens

Siemens Power contactor, spring, 3-pole, 1NC, 24VDC size S00 Part number 3RT2015-2BB42

EAN / Barcode 4011209827400
Product Type Control Panel
Product Class Power contactor, AC switching
Category Contactors and Motor Protection
Sub-category Contactor
ETIM Class Power contactor, AC switching
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

SIRIUS 3RT2 Power Contactor

The SIRIUS 3RT2 power contactor is designed for switching motors efficiently with high contact reliability in a compact design.

Technical details:

  • Type: power contactor
  • Application: AC-3e/AC-3
  • Rated current: 7 A
  • Power: 3 kW / 400 V
  • Number of poles: 3-pole
  • Control voltage: 24 V DC
  • Auxiliary contacts: 1 NC
  • Terminal type: spring-loaded terminal
  • Size: S00
  • Climate resistance: approved for worldwide use (e.g. IEC and UL/CSA)
  • IE3/IE4-ready

Customer benefits:

  • Modular SIRIUS system with optimally coordinated products.
  • Convincing performance from a compact design.
  • Combination with various components in the load feeder.
  • Factory tested device combinations available.
  • Best connection to automation level for every application (parallel, via ASi or IO-Link).
  • Integrated auxiliary switches reduce design complexity.
  • Front-panel terminals simplify wiring.
  • Available with screw or spring-type terminals for fast, maintenance-free connection.
  • Comprehensive range of standardized accessories for all sizes.
  • Available link modules and function modules reduce wiring expense.
  • Simple, efficient and always up to date with the SIRIUS modular system.

Technical Specifications

Compliance/StandardsIEC 61508-2, EN 60947-1, IEC 60947-4, IEC 61508, IEC 60529, IEC 60947-5, EN 60715, IEC 60068-2, IEC 81346-2
country_of_originGermany
Depth73 mm
descriptionpower contactor, AC-3e/AC-3, 7 A, 3 kW / 400 V, 3-pole, 24 V DC, auxiliary contacts: 1 NC, spring-loaded terminal, size: S00
Height70 mm
IP RatingIP20
IP Rating DetailedIP20 touch protection on the front according to IEC 60529 finger
Modular versionYes
Number of auxiliary contacts as normally closed contact1
Number of normally open contacts as main contact3
Operating voltage AC 50 Hz690 V
Operating voltage AC 60 Hz690 V
Part Depth (mm)77,50mm
Part Height (mm)73,50mm
Part Width (mm)50,00mm
Rated control supply voltage DC24 V
Rated operation current Ie at AC-1, 400 V18 A
Rated operation current Ie at AC-3, 400 V7 A
Rated operation current Ie at AC-4, 400 V6.5 A
Rated operation power at AC-3, 400 V3 kW
Rated operation power NEMA2.2064964 kW
Type of electrical connection of main circuitSpring clamp connection
Type of VoltageDC
Voltage type for actuatingDC
Weight (g)0,312 Kg
Width45 mm
View complete specifications on Siemens
