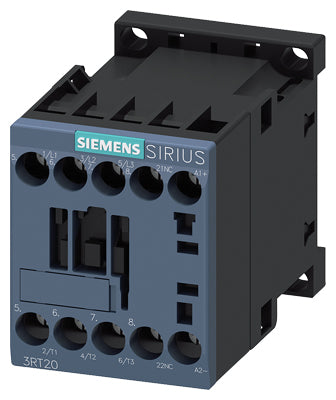

Siemens Power contactor, 3-pole, 1NC, size S00, 3kW
View on Siemens 📄 Datasheet
Siemens

Siemens Power contactor, 3-pole, 1NC, size S00, 3kW Part number 3RT2015-1BB42

EAN / Barcode 4011209780811
Product Type Control Panel
Product Class Power contactor, AC switching
Category Contactors and Motor Protection
Sub-category Contactor
ETIM Class Power contactor, AC switching
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

This SIRIUS power contactor is rated for 7 A and supports motor loads up to 3 kW at 400 V AC. It includes 1 NC auxiliary contact and operates with a 24 V DC coil, making it ideal for smaller motor switching applications.

Technical Specifications

Connection Style1 NC / 3 Poles / 3 NO
Connection TypeScrew type terminals
Current Rating / Rated Current0.1 - 18 A
Depth73 mm
Height58 mm
IP RatingIP20
Max Frequency250 1/h - 1000 1/h
Modular versionYes
Mounting TypeScrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Number of auxiliary contacts as normally closed contact1
Number of normally open contacts as main contact3
Operating Period10 000 000 cycles (contactor typical) / 5 000 000 (of the contactor with added electronically optimized auxiliary switch block typical) / 10 000 000 cycles (of the contactor with added auxiliary switch block typical) (Mechanical)
Operating voltage AC 50 Hz690 V
Operating voltage AC 60 Hz690 V
Packaging size / unitpc(s)
Part Depth (mm)73mm
Part Height (mm)58mm
Part Width (mm)45mm
Rated control supply voltage DC24 V
Rated Operating Voltage690 VAC
Rated operation current Ie at AC-1, 400 V18 A
Rated operation current Ie at AC-3, 400 V7 A
Rated operation current Ie at AC-4, 400 V6.5 A
Rated operation power at AC-3, 400 V3 kW
Rated operation power at AC-4, 400 V3 kW
Rated operation power NEMA2.2064964 kW
Supply Voltage24 V
Temperature: Operating-25°C to 60°C
Type of electrical connection of main circuitScrew connection
Type of VoltageDC
Voltage type for actuatingDC
Width45 mm
Country of OriginGermany
View complete specifications on Siemens
