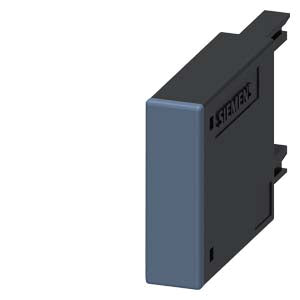

Siemens Surge suppressor, RC element, 48-127VAC/ 70-150VDC
Log in to view pricing
Sign in with your trade account to access live pricing and place orders. New to Rubicon Industrial Technology? Create an account in seconds.
Product Description
Product Overview
Surge suppressor, RC element, 48-127 V AC, 50/60 Hz, 70-150 V DC, for contactors 3RT2.1 and auxiliary contactors 3RH2. Article Number: 3RT2916-1CC00.
Key Specifications
Electrical Ratings:
- AC voltage range: 48-127 V AC, 50/60 Hz
- DC voltage range: 70-150 V DC
- Function: Surge suppression and voltage protection
Compatibility:
- Designed for contactors 3RT2.1 series
- Compatible with auxiliary contactors 3RH2 series
- Provides coil protection against voltage spikes
Construction Features:
- RC element technology for reliable surge protection
- Compact design for easy integration
- Direct mounting to compatible contactors
Physical Specifications
- Net weight: 0.007 kg
- Packaging dimensions: 31 × 57 × 10 mm
- Country of origin: Czech Republic
Product Identifiers
- EAN: 4011209740013
- UPC: 662643918434
Compliance Information
- RoHS compliant since 01.10.2009
- WEEE (2012/19/EU) Take-Back Obligation: Yes
REACH Regulation Information This product contains the following substance from the candidate list in concentrations higher than 0.1% weight by weight (w/w):
- Lead
Based on currently available information, this substance does not pose any risk if the article is used as intended (including disposal). Please refer to product documentation for additional details.
Download existing graphical data for this product:
Additional Information
| Part Width (mm) | 31,00mm |
| Part Height (mm) | 57,00mm |
| Part Depth (mm) | 10,00mm |
| Weight (g) | 0,007 Kg |
| Type of Voltage | AC |
| description | surge suppressor, RC element, 48-127 V AC, 50/60 Hz, 70-150 V DC, for contactors 3RT2.1 and auxiliary contactors 3RH2 |
| country_of_origin | Czech Republic |
Technical Documentation & Downloads
Additional Datasheet
CAD Drawing
Technical CAD drawing file

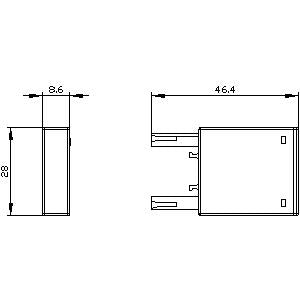

Dimensional Drawing
