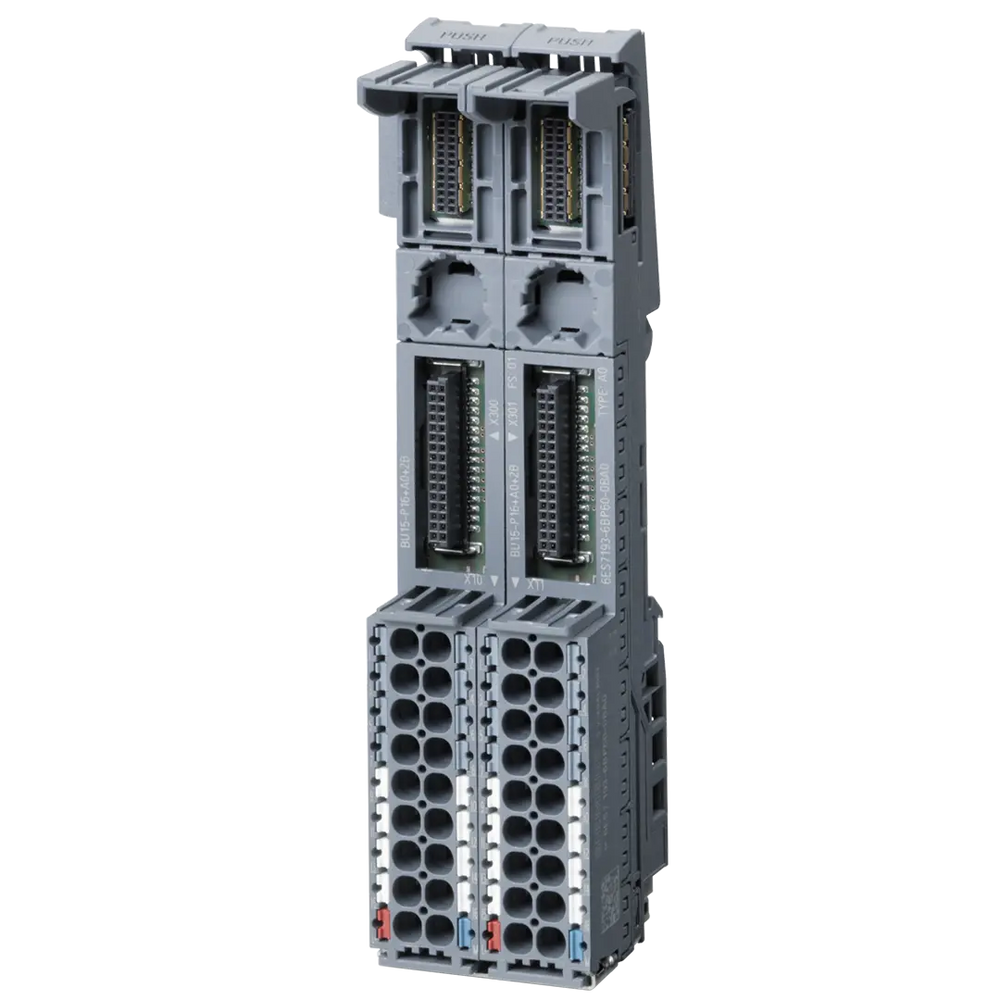

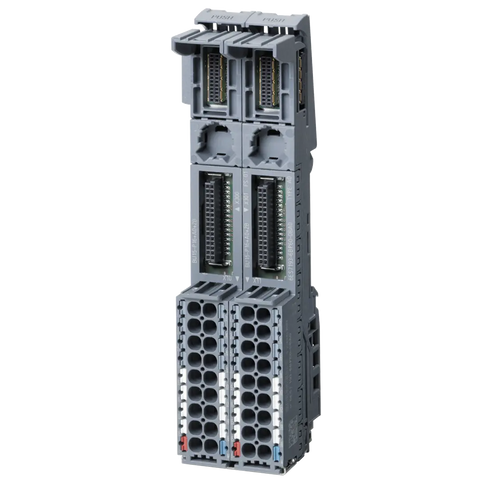

Siemens 2-fold Base unit, push-in terminals, 30 x 117mm

Product Overview

The SIMATIC ET 200SP 2-Fold BaseUnit provides specialized mounting capabilities for ET 200SP distributed I/O modules with Type A0 configuration. This component features push-in terminals without auxiliary terminals and is bridged to the left for simplified wiring configurations in compact control installations.

Key Features

• 2-Fold Configuration: Accommodated two ET 200SP I/O modules in single BaseUnit
• Type A0 Design: BU15-P16+A0+2B configuration with standardized connections
• Push-In Terminals: Tool-free connection technology for simplified wiring
• Left-Bridged Design: Integrated voltage distribution without auxiliary terminals
• Compact Footprint: 30 × 117 mm dimensions for space-efficient installations
• DIN Rail Mounting: Standard 35mm DIN rail compatibility
• Integrated Voltage Buses: Reduced wiring complexity with self-assembling buses

Technical Specifications

• Configuration: 2-fold BaseUnit, Type A0 (2BU15-P16+A0+2B)
• Dimensions: 30 mm W × 117 mm H | Weight: 0.093 kg
• Terminal Type: Push-in terminals without auxiliary connections
• Voltage Distribution: Bridged to the left configuration
• Connection: Direct insertion terminals for field wiring
• Mounting: DIN rail compatible (35 × 7.5 mm or 35 × 15 mm)

Successor Product Information

The 6ES7193-6BP00-0BA0 alternative BaseUnit offers:

• Single-Module Design: Individual BaseUnit for each I/O module
• Enhanced Flexibility: Modular approach allows mixed configurations
• Same Terminal Technology: Push-in terminals with identical wiring method
• Improved Serviceability: Individual module replacement capability
• Full Compatibility: Works with all ET 200SP I/O modules and system components

Applications & Integration

Primary Applications:

• ET 200SP system installations requiring 2-module configurations
• Compact control cabinet installations requiring 2-module configurations
• Process control systems with space constraints
• Distributed I/O applications in manufacturing environments

System Compatibility:

• SIMATIC ET 200SP distributed I/O system modules
• PROFINET and PROFIBUS communication networks
• TIA Portal engineering and configuration tools
• Standard 24V DC industrial power supplies

Quality & Compliance

• Status: Active Product (PM300) | Origin: China
• EAN: 4047623410379 | UPC: 804766751004
• RoHS Compliant: Since 30.08.2018 | WEEE: Take-back obligation applies
• REACH: Contains lead above 0.1% w/w (safe when used as intended)
