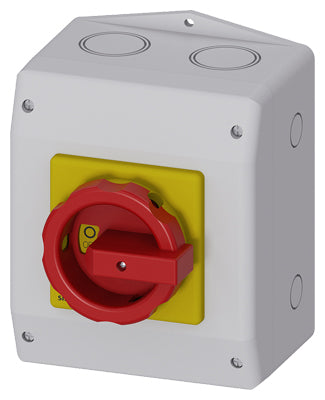

Siemens 3P Pole Isolator Switch - 63A Maximum Current, 22kW Power Rating, IP65
View on Siemens 📄 Datasheet
Siemens

Siemens 3P Pole Isolator Switch - 63A Maximum Current, 22kW Power Rating, IP65 Part number 3LD2565-0TB53

EAN / Barcode 4011209524323
Product Type Control Panel
Product Class Switch disconnector (low voltage)
ETIM Class Switch disconnector (low voltage)
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

Sentron, switch disconnector 3LD

The 3LD switch disconnector acts as an EMERGENCY-OFF switch, providing safe shutdown capabilities for various applications.

Technical details:

  • Type: EMERGENCY-OFF switch
  • Poles: 3-pole
  • Iu: 63 A
  • Operational power / at AC-23 A at 400 V: 22 kW
  • Enclosure: molded-plastic for metric cable gland
  • Operating mechanism: rotary
  • Color: red/yellow
  • Degree of protection: IP65
  • Approval: IEC, UL, CCC, and shipbuilding
  • Versatility: available for front mounting, mounting plate, DIN rail, or installation in distribution boards
  • Variants: includes options for DC applications

Customer benefits:

  • Safe shutdown of loads in various industries such as mechanical, conveyor systems, chemical, and food and beverage.
  • Modular design allows fast and easy mounting of auxiliary switches, N-PE terminal, or 4th pole.
  • Optimum disconnection of 16 A of 250 A from the power supply due to locking capability.
  • Can be used worldwide due to international approvals.
  • End-to-end safety for users and systems.

Technical Specifications

Colour control elementRed
Degree of protection (IP), front sideIP65
Degree of protection (NEMA)Other
Depth149 mm
Device constructionBuilt-in device fixed built-in technique
Height199 mm
InterlockableYes
Max. rated operation voltage Ue AC690 V
Number of poles3
Number of switches1
Rated operation power at AC-23, 400 V22 kW
Rated operation power at AC-3, 400 V19 kW
Rated permanent current at AC-21, 400 V63 A
Rated permanent current at AC-23, 400 V43 A
Rated permanent current Iu63 A
Rated short-time withstand current lcw1.26 kA
Suitable for front mounting centreYes
Type of control elementShort thumb-grip
Type of electrical connection of main circuitFrame clamp
Version as emergency stop installationYes
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchYes
Width146 mm
View complete specifications on Siemens
