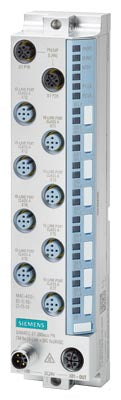

Siemens 6ES7148 Series I/O module for use w/ wire break at input Part number 6ES7148-6JE00-0BB0

Product Overview

The Siemens SIMATIC ET 200eco PN CM 4 × IO-Link + DIQ 12 × 24 V DC M12-L (6ES7148-6JE00-0BB0) is a compact, field-mounted communication and I/O module designed for distributed automation applications. It provides four IO-Link Class A ports and twelve 24 V DC digital input/output channels, allowing flexible connection of smart sensors and actuators directly in the field. The module supports PROFINET, EtherNet/IP, and Modbus TCP communication, providing high performance and diagnostics. With its IP67/IP69K-rated housing, it is built for harsh industrial environments requiring robust, space-saving I/O integration.

Key Features

• 4 × IO-Link Class A master ports for connecting intelligent sensors and actuators
• 12 × 24 V DC digital inputs/outputs (DIQ) for flexible configuration
• Supports PROFINET, EtherNet/IP, and Modbus TCP communication protocols
• Durable M12-L field connectors for rugged installations
• Integrated channel-level diagnostics and I&M0…3 support
• High protection rating (IP67/IP69K) for outdoor or washdown environments
• Compact, decentralized design suitable for distributed automation

Technical Specifications

• Product Series: SIMATIC ET 200eco PN
• Article Number: 6ES7148-6JE00-0BB0
• Module Type: Communication Module (CM) with IO-Link and DIQ
• Interfaces: 1 × PROFINET (100 Mbit/s full duplex), EtherNet/IP, Modbus TCP
• IO-Link Ports: 4 × Class A
• Digital I/O Channels: 12 × 24 V DC configurable inputs/outputs
• Connections: 8 × M12 field connectors, 2 × M12 D-coded for PROFINET
• Current per Channel: Up to 0.5 A / 2 A per potential branch
• Protection Rating: IP67 / IP69K
• Performance Level (Safety): Up to PL d (ISO 13849-1)
• Operating Temperature: –20 °C to +60 °C
• Mounting Type: Direct field installation with M12 connectors
• Housing Material: Rugged industrial-grade polymer
• Country of Origin: Germany

Compliance & Certifications

• Safety: Meets ISO 13849-1 (Performance Level d)
• Fieldbus Standards: Conforms to PROFINET, EtherNet/IP, and Modbus TCP specifications
• Environmental: RoHS compliant and environmentally safe
• Protection Class: IP67 / IP69K certified for industrial environments
• Quality: Manufactured under Siemens ISO 9001 quality management standards

Applications

The Siemens 6ES7148-6JE00-0BB0 module is ideal for distributed I/O systems in automation and machine building. It is widely used in packaging machinery, material handling systems, robotics, and production lines requiring rugged, decentralized control with IO-Link capability. Its robust IP69K-rated design ensures reliable performance in demanding environments such as food processing, automotive, and industrial manufacturing plants.
