Siemens Industrial ethernet TP flexible cable, GP 2x2

Product Overview

Industrial Ethernet FC TP flexible cable, GP 2x2 (PROFINET Type B), TP installation cable with flexible cores, PROFINET type B, 4-core, shielded, CAT 5e, sold by the meter, delivery unit max. 2500 m. This high-performance flexible networking cable is specifically designed for applications requiring occasional movement in industrial environments, providing reliable connectivity for PROFINET and Industrial Ethernet systems.

Key Features

• Flexible Core Design: Engineered with flexible cores for use in occasionally moving machine parts
• PROFINET Type B Compliance: Fully compliant with PROFINET Type B specifications for industrial automation
• Double Shielding: Superior interference immunity through foil and braiding shielding combination
• Automotive Industry Compatible: Silicone-free construction suitable for automotive applications including paint lines
• High Flexibility: Optimized for dynamic applications with excellent bending characteristics

Technical Specifications

• Article Number: 6XV1870-2B
• Cable Type: Industrial Ethernet FC TP flexible cable
• Configuration: GP 2x2 (PROFINET Type B)
• Category: Cat.5e
• Number of Cores: 4-core
• Conductor Cross-Section: 4x0.75mm²
• Conductor Diameter: 0.75mm
• Conductor Type: Class 2 stranded (flexible)
• Outer Diameter: Approximately 6.5mm
• Net Weight: 0.068 kg per meter (68 kg/km)
• NVP Value: 69%
• Maximum Delivery Length: 2500 meters

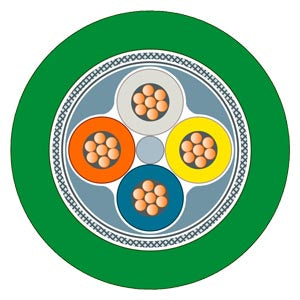

Construction Details

• Shielding Type: SF/UTP (Screened Foiled/Unshielded Twisted Pair)
• Screen Configuration: Foil + braiding over stranding
• Outer Sheath Material: Polyvinyl chloride (PVC)
• Outer Sheath Color: Green
• Core Insulation Material: Specialized industrial grade
• Stranding Elements: 2 quad elements
• Fire Rating: Reaction-to-fire class Eca according to EN 13501-6

Operating Parameters

• Installation Temperature: -10°C to +60°C during assembly/handling
• Operating Temperature: -25°C to +75°C after installation
• Minimum Bending Radius: 52mm (moving applications with forced guidance)
• Minimum Bending Radius: 52mm (moving applications/free movement)
• Minimum Bending Radius: 52mm (stationary applications/permanent installation)

Applications

• Moving Machine Parts: Ideal for occasionally moving industrial machinery
• PROFINET Networks: Type B compliant for industrial communication protocols
• Automotive Industry: Manufacturing and assembly line applications
• Industrial Automation: Factory automation and control systems
• Robotics: Flexible applications in robotic systems
• Process Control: Dynamic control system connections

Installation Benefits

• Time-Saving Installation: Easy and quick on-site installation process
• Network Immunity: Interference-free operation due to double-shielded design
• Integrated Grounding: Built-in grounding concept for enhanced performance
• Flexible Movement: Designed for dynamic applications requiring cable movement
• Reliable Performance: Consistent signal integrity in challenging industrial environments

Compatibility

• Connection Type: For use with IE FC RJ45 connectors
• System Integration: Compatible with SIMATIC NET Industrial Ethernet systems
• Protocol Support: PROFINET Type B and Industrial Ethernet protocols
• Equipment Compatibility: Suitable for CU230-2 PN and other SINAMICS components

Quality & Compliance

• Country of Origin: Germany
• RoHS Compliance: Since 01.01.2006
• Export Control: AL : N / ECCN : N
• EAN: 4019169404181
• UPC: 662643220483
• REACH Compliance: No SVHC substances above 0.1% w/w threshold
• Standards Compliance: EN 13501-6 fire behavior classification

Ordering Information

• Selling Unit: Sold by the meter
• Maximum Delivery Length: 2500 meters
• Quantity Unit: 1 meter
• Packaging Quantity: 1 meter

Environmental Specifications

• Smoke Development: Compliant with EN 13501-6 standards
• Flame Retardance: Eca class reaction-to-fire rating
• Chemical Resistance: Suitable for industrial chemical environments
• UV Resistance: Designed for industrial environmental exposure
