Siemens RJ45 Plug-in FastConnect 180 2x 2. Part number 6GK1901-1BB10-2AA0

Product Overview

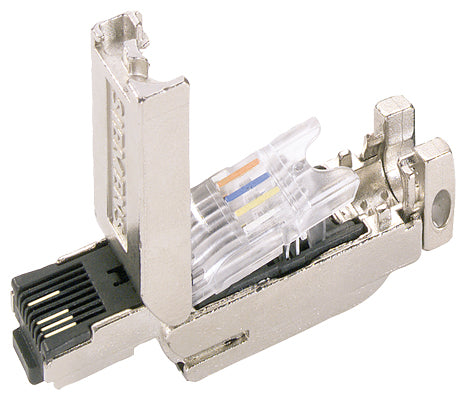

The Siemens 6GK1901-1BB10-2AA0 is an Industrial Ethernet FastConnect RJ45 plug designed for high-performance industrial networking applications. This robust connector features a 180-degree cable outlet configuration and is engineered specifically for use with IE FC TP cable 2x2 systems.

Key Features

• High-Speed Connectivity: Supports 10/100 Mbit/s data transmission rates for reliable industrial Ethernet communication
• Rugged Metal Enclosure: Constructed with durable metal housing providing exceptional EMC (electromagnetic compatibility) shielding to minimize interference from nearby electrical components
• FastConnect Technology: Features Siemens' proprietary FastConnect system with color-coded insulation-displacement terminations for quick, error-free installation
• 180° Cable Outlet: Provides flexible cable routing options with straight-through cable exit design
• Industrial Grade: Built to withstand harsh industrial environments with reliable performance and longevity

Technical Specifications

• Connector Type: RJ45 plug-in connector (male)
• Cable Compatibility: IE FC TP cable 2x 2 (4-core industrial Ethernet cable)
• Data Rate: 10/100 Mbit/s
• Cable Outlet Angle: 180°
• Protection Rating: IP20 (touch-proof for electrical safety)

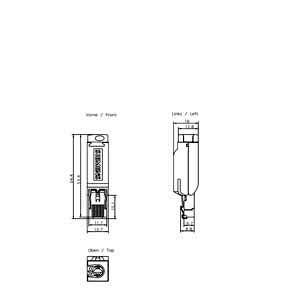

• Dimensions: 13.7 (W) x 16 (H) x 55 (D) mm
• Net Weight: 0.034 kg
• Electrical Connections: 4 connections, 8 positions
• Reusability: Can be reused up to 10 times
• Maximum Distance: Direct device connections up to 100m without patching technology

Performance Benefits

• Integrated Strain Relief: Provides additional strength and durability to prevent cable breakage and signal loss
• Sophisticated Quick-Assembly System: Minimizes installation time and reduces the risk of wiring errors
• Reliable Shield Attachment: Ensures consistent signal quality and electromagnetic compatibility
• Lightweight Design: Easy handling and installation in confined spaces

Applications

This connector is ideal for structured cabling in industrial environments where office-style Ethernet infrastructure needs to be adapted for production hall installations. Perfect for:

• Industrial automation systems
• Manufacturing equipment connectivity
• Process control networks
• Factory floor communication systems
• Direct device-to-device connections

Compliance & Environmental

• RoHS Compliant: Meets environmental compliance standards
• Country of Origin: Poland
• Export Control: AL: N / ECCN: N
• EAN: 4019169403931
• REACH Compliance: Fully compliant with current regulations

Package Contents

• 1x Industrial Ethernet FastConnect RJ45 plug
• 1 pack = 1 unit

Compatibility

This connector is part of Siemens' comprehensive FastConnect system, ensuring compatibility with other Siemens Industrial Ethernet components and providing a coordinated approach to industrial network infrastructure.
