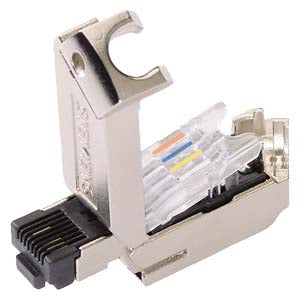

Siemens Industrial Ethernet FastConnect RJ45 plug, 145 2x 2 Part number 6GK1901-1BB30-0AA0

Product Overview

The Siemens 6GK1901-1BB30-0AA0 is the Siemens Industrial Ethernet FastConnect RJ45 Plug 145 2x2, a rugged RJ45 plug-in connector designed for Industrial Ethernet cabling using the FastConnect (FC) system. It enables reliable 10/100 Mbit/s network connections in industrial automation, with a sturdy metal housing and a 145° cable outlet — ideal for installations requiring compact, robust Ethernet terminations in control cabinets or field enclosures.

Key Features

• RJ45 plug-in connector for Industrial Ethernet (Cat5 / 10/100 Mbit/s)
• FastConnect (FC) system — enables quick and tool-less assembly with compatible IE-FC TP cables
• 4-wire TP FC cable connection (AWG 22) using integrated cut-and-clamp contacts — no separate crimping required
• 145° cable outlet — helps when routing cables in tight or shallow enclosures
• Rugged metal housing for industrial durability and mechanical protection
• Compact dimensions and light weight — good for tight spaces and panel mounting
• IP20 rating (when installed) suitable for standard industrial control cabinets
• Wide ambient temperature range — suitable for harsh industrial environments
• Re-usable up to 10 times — supports maintenance or reconfiguration without damage

Technical Specifications

• Article Number: 6GK1901-1BB30-0AA0
• Product Type: Industrial Ethernet RJ45 Plug 145 (2×2) — FastConnect
• Network Speed: 10 / 100 Mbit/s (Industrial Ethernet)
• Connector Outlets: 1 × RJ45 for network equipment, 1 × TP-cable connection (4 conductors)
• Cable Outlet Angle: 145°
• Housing Material: Metal (for robustness and shielding)
• Protection Class: IP20
• Ambient Operating Temperature: –40 °C … +85 °C
• Net Weight (approx.): 35 g
• Re-use / Re-plug Cycles: Up to 10 cycles (typical for FC connectors)
• Cable Type Supported: IE FC TP cable 2×2 with AWG 22 wires
• Use Case: Industrial Ethernet cabling for control panels, switchgear, automation racks, sensor/actuator networks

Compliance & Certifications

• Part of Siemens SIMATIC NET — compliant with industrial cabling standards
• Suitable for Industrial Ethernet, PROFINET, EtherNet/IP and related network topologies using FC cabling
• Designed for industrial environments — robust housing, temperature rating, and reuse capability
• Compatible with Siemens IE FC cable system for consistent EMC shielding and cabling reliability

Applications

The 6GK1901-1BB30-0AA0 is ideal for constructing or extending industrial Ethernet networks in automation systems — such as PLC communication lines, sensor/actuator networks, HMI connections, or distributed I/O systems. It is particularly useful when quick, reliable field terminations are needed, when space or enclosure depth is limited, or when robust, shielded connectors are required in harsh industrial environments. Typical use cases include factory automation, machine control panels, switchgear enclosures, and production-line communication networks.
