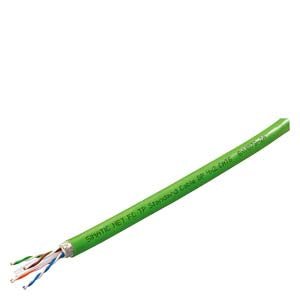

Siemens Industrial ethernet FC TP, standard cable, CAT6A, 4x2

Product Overview

Industrial Ethernet FC TP standard cable 4x2, TP installation cable CAT6A for connection to FC RJ45 Modular outlet, AWG22, sold by the meter, delivery unit max. 1000 m. This high-performance networking cable is designed for permanent installation in demanding industrial environments, providing reliable Gigabit-capable connectivity for Industrial Ethernet applications.

Key Features

• Gigabit-Ready Performance: Cat.6A certified cable with 4x2 twisted pair configuration for high-speed data transmission
• Rigid Core Construction: Designed with rigid cores for permanent installation applications
• Double Shielding: High interference immunity through double shielding (SF/UTP) for reliable operation in industrial environments
• Temperature Resilience: Operates reliably in temperature range of -40°C to +80°C
• Versatile Applications: Suitable for automotive, mechanical engineering, energy automation, oil & gas, and wind turbine applications

Technical Specifications

• Article Number: 6XV1870-2E
• Cable Type: Industrial Ethernet FC TP standard cable
• Configuration: 4x2 twisted pair
• Category: Cat.6A
• Wire Gauge: AWG22
• Conductor Cross-Section: 0.33 mm²
• Conductor Diameter: 0.64 mm
• Number of Cores: 8
• Number of Stranding Elements: 4
• Outer Diameter: Approximately 9.6 mm
• NVP Value: 63%
• Shielding Type: SF/UTP (Screened Foiled/Unshielded Twisted Pair)
• Net Weight: 0.093 kg per meter

Construction Details

• Cable Design: Rigid core construction for permanent installation
• Shielding: Double shielding for maximum interference immunity
• Operating Temperature: -40°C to +80°C
• Installation Temperature: -40°C minimum during assembly/handling
• Minimum Bending Radius: 80 mm (moving applications with forced guidance)
• Minimum Bending Radius: 80 mm (moving applications/free movement)

Applications

• Industrial Automation: SIMATIC NET systems and Industrial Ethernet networks
• Automotive Industry: Manufacturing and assembly line applications
• Mechanical Engineering: Robotics and trailing cable applications
• Energy Automation: Power generation and distribution systems
• Oil & Gas Production: Industrial control and monitoring systems
• Wind Turbines: Renewable energy installations
• PROFINET Networks: Industrial communication protocols

Installation Benefits

• Time-Saving Installation: Easy and quick on-site installation
• Permanent Installation: Designed for fixed installations with rigid cores
• High Reliability: Double shielding ensures consistent performance
• Standard Compliance: Complies with ISO/IEC 11801 and EN 50173 Category 6 standards
• Gigabit Capability: Supports high-speed data transmission up to 1000 Mbps

Ordering Information

• Selling Unit: Sold by the meter
• Maximum Delivery Length: 1000 meters
• Quantity Unit: 1 meter
• Packaging Quantity: 1 meter

Quality & Compliance

• Country of Origin: Germany
• RoHS Compliance: Since 30.11.2004
• Export Control: AL : N / ECCN : N
• EAN: 4019169404600
• UPC: 662643219005
• REACH Compliance: Contains lead in concentrations higher than 0.1% w/w as per Article 33 requirements

Compatibility

• Connection Type: For use with FC RJ45 Modular outlets
• System Integration: Compatible with SIMATIC NET Industrial Ethernet systems
• Protocol Support: PROFINET and Industrial Ethernet protocols
• Connector Compatibility: Designed for use with IE FC RJ45 plugs and outlets
