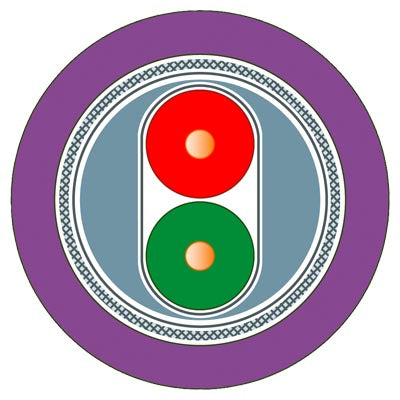

Siemens Profibus FC standard Bus cable, 2-wire, shielded, 200m Part number 6XV1830-0ET20

Product Overview

The Siemens 6XV1830-0ET20 is a 2-wire shielded bus cable designed for PROFIBUS FC (Field Cable) applications. With a length of 200 m, it features a special configuration for quick assembly and is suitable for permanent installation in industrial networks requiring reliable data transmission.

Key Features

• Shielded 2-wire bus cable for PROFIBUS FC standard operation
• Length: 200 m – pre-selected to minimise on-site cutting and correct length issues
• Quick-assembly configuration to expedite installation and reduce labour time
• Outer sheath colour: violet/purple for easy identification in network wiring systems
• Designed for industrial network infrastructure requiring high mechanical and electrical performance

Technical Specifications

• Article Number: 6XV1830-0ET20
• Cable Type: PROFIBUS FC Standard Cable, 2 wires
• Length: 200 m
• Wire Insulation Diameter: Inner conductor approx. 0.65 mm; insulation 2.55 mm; overall sheath diameter approx. 8 mm
• Impedance: Rated 150 Ω; tolerance ±10% in relevant frequency ranges
• Attenuation Factor (max): 0.0025 dB/m at 9.6 kHz; 0.004 dB/m at 38.4 kHz; 0.022 dB/m at 4 MHz; 0.042 dB/m at 16 MHz
• Shield Resistance: Maximum 9.5 Ω/km
• Operating Temperature Range: -40 °C to +75 °C
• Minimum Bending Radius: Single bend ≥ 37.5 mm; multiple bends ≥ 75 mm

Compliance & Certifications

• UL / ETL listed: Yes
• RoHS conformity: Yes
• Flame-resistance: IEC 60332-3-24 Category C
• Silicon-free (insulation) and oil-resistant in accordance with IEC 60811-2-1

Applications

Ideal for installation in PROFIBUS DP/FC network segments in industrial automation, factory systems, control cabinets, fieldbus installations, and machine-integrated communication wiring. The 200 m pre-length cable helps simplify installation of long multi-node bus runs, particularly in OEM or panel-build contexts.
