Siemens Profibus FC standard bus cable, 2-wire Part number 6XV1830-0EH10

Product Overview

PROFIBUS FC Standard Cable GP, bus cable 2-wire, shielded, special configuration for quick assembly, Delivery unit: max. 1000 m, sold by the meter. This high-performance bus cable is specifically engineered for fast, permanent installation in industrial automation applications, featuring double shielding for superior EMC protection and a special design optimized for quick assembly with PROFIBUS FastConnect components.

Key Features

• FastConnect Technology: Special configuration designed for rapid installation and quick assembly
• Double Shielding: Aluminum foil plus tinned copper braided mesh for superior EMC protection
• Industrial Grade: Engineered for harsh industrial environments with strong electromagnetic fields
• Silicon-Free Construction: Suitable for automotive industry applications including paint lines
• Meter Marking: Printed meter markings for easy length measurement during installation

Technical Specifications

• Article Number: 6XV1830-0EH10
• Cable Type: PROFIBUS FC Standard Cable GP
• Configuration: 2-wire bus cable
• Conductor Material: Bare copper wire
• Conductor Diameter: 0.65mm
• Conductor Cross-Section: 0.64mm² (2 x 0.64mm²)
• Number of Cores: 2
• Core Colors: Green and Red
• Outer Diameter: 8mm
• Net Weight: 0.077 kg per meter (80 kg/km)
• Maximum Delivery Length: 1000 meters

Electrical Properties

• Characteristic Impedance: 150Ω ±10% (3 MHz - 20 MHz)
• Operating Voltage: 100V RMS
• Loop Resistance: Maximum 110Ω/km
• Shield Resistance: Maximum 9.5Ω/km
• Capacitance: 28.5 pF/m at 1 kHz
• Damping Ratio: 0.0025 dB/m at 9.6 kHz, 0.042 dB/m at 16 MHz
• Impedance at 9.6 kHz: 270Ω
• Impedance at 38.4 kHz: 185Ω

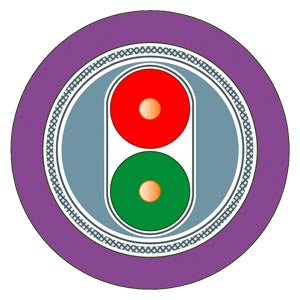

Construction Details

• Conductor: Bare copper wire, solid (Class 1)
• Insulation: Polyethylene (PE), 2.55mm diameter
• Inner Sheath: 5.4mm diameter
• Shield: Aluminum foil + tinned copper braided mesh (128 braided mesh)
• Outer Sheath: PVC, purple color (PROFIBUS standard)
• Cable Type: 02YSY (ST) CY 1 x 2 x 0.64mm²

Operating Parameters

• Operating Temperature: -40°C to +75°C
• Storage Temperature: -40°C to +75°C
• Transport Temperature: -40°C to +75°C
• Installation Temperature: -40°C to +75°C
• Minimum Bending Radius: 37.5mm (single bend)
• Minimum Bending Radius: 75mm (multiple bends)
• Maximum Tensile Load: 100N
• Symmetrical Tolerance: ±0.4mm (outer diameter)

Applications

• PROFIBUS Networks: Standard bus cable for PROFIBUS DP and PROFIBUS PA systems
• Industrial Automation: SIMATIC S7 systems and industrial control networks
• Automotive Industry: Manufacturing and assembly line applications
• Process Control: Industrial process monitoring and control systems
• Factory Automation: Manufacturing automation and machine control
• Electromagnetic Environments: Suitable for areas with strong electromagnetic interference

Installation Benefits

• Fast Assembly: Special design for quick and easy on-site installation
• Reliable Shield Contact: Ensures consistent grounding and EMC protection
• Strain Relief: Built-in strain relief for secure connections
• Length Measurement: Printed meter markings simplify installation planning
• Grounding Concept: Enables system-wide grounding via external shield
• Tool Compatibility: Compatible with PROFIBUS stripping tools

EMC and Shielding

• Double Shield Design: Aluminum foil plus tinned copper braided mesh
• EMC Compliance: Excellent electromagnetic compatibility in industrial environments
• Interference Immunity: Network insensitive to electromagnetic interference
• Grounding Integration: External shield enables comprehensive grounding concept
• Signal Integrity: Shielded twisted-pair design maintains signal quality

Quality & Compliance

• Country of Origin: Slovakia
• RoHS Compliance: Since 01.01.2006
• Export Control: AL : N / ECCN : N
• EAN: 4019169400312
• UPC: 662643224474
• CE Marking: CE compliant
• UL Registration: UL registered
• Standards Compliance: VDE 0472, IEC 332.1 Class B

Ordering Information

• Selling Unit: Sold by the meter
• Maximum Delivery Length: 1000 meters
• Available Lengths: 50m, 100m, 200m, 300m, 500m, 1000m packaging options
• Quantity Unit: 1 meter
• Packaging: Available in coils and wooden reels for larger quantities

Environmental Specifications

• Halogen-Free: No halogen content
• Silicon-Free: Suitable for automotive paint line applications
• Flame Resistant: IEC 60332, UL 1685 compliance
• Chemical Resistance: PVC sheath provides chemical resistance
• UV Resistance: Suitable for indoor industrial applications

Compatibility

• PROFIBUS Systems: Compatible with PROFIBUS DP and PROFIBUS PA
• SIMATIC Integration: Works with SIMATIC S7-300, S7-400, and S7-1200/1500 systems
• Connector Compatibility: Designed for PROFIBUS FastConnect connectors
• Repeater Extension: Can be extended up to 10,000m with repeaters
• Bus Terminals: Compatible with PROFIBUS bus terminals and grounding systems
