Siemens Industrial ethernet cable, standard, shielded, 4-core Part number 6XV1840-2AH10

Product Overview

Industrial Ethernet FC TP Standard cable, GP 2x2 (PROFINET Type A), TP installation cable for connection to IE FC RJ45 2x2, for universal use, 4-core, shielded CAT 5E, sold by the meter, delivery unit max. 4000 m. This versatile standard cable is designed for permanent installation in industrial environments, providing reliable connectivity for PROFINET Type A and Industrial Ethernet applications across a wide range of industrial automation systems.

Key Features

• Universal Application: Designed for versatile use across various industrial automation applications
• PROFINET Type A Compliance: Fully compliant with PROFINET Type A specifications for industrial communication
• Solid Core Construction: Rigid core design optimized for permanent installation applications
• Double Shielding: Superior interference immunity through aluminum foil and tinned copper braid shielding
• Silicon-Free Design: Suitable for automotive industry applications including paint lines

Technical Specifications

• Article Number: 6XV1840-2AH10
• Cable Type: Industrial Ethernet FC TP Standard cable
• Configuration: GP 2x2 (PROFINET Type A)
• Category: Cat.5E
• Number of Cores: 4-core
• Conductor Cross-Section: 4x0.64mm
• Conductor Diameter: 0.64mm
• Conductor Type: Class 1 solid core
• Wire Gauge: AWG 22
• Outer Diameter: Approximately 6.5mm
• Net Weight: 0.061 kg per meter (70 kg/km)
• NVP Value: 69%
• Maximum Delivery Length: 4000 meters

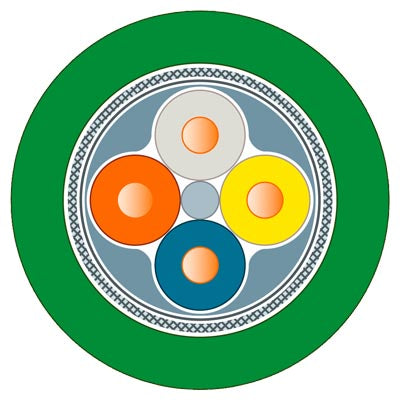

Construction Details

• Shielding Type: SF/UTP (Screened Foiled/Unshielded Twisted Pair)
• Screen Configuration: Aluminum foil + tinned copper braid over stranding
• Outer Sheath Material: Polyvinyl chloride (PVC)
• Outer Sheath Color: Green
• Core Insulation Material: Polyethylene (PE)
• Core Identification: Color-coded
• Stranding Elements: 2 quad elements
• Fire Rating: Reaction-to-fire class Eca according to EN 13501-6

Operating Parameters

• Operating Temperature: -40°C to +75°C
• Installation Temperature: -40°C to +60°C during assembly/handling
• Storage Temperature: -40°C to +75°C
• Transport Temperature: -40°C to +75°C
• Rated Voltage: 80V
• Relative Humidity: Maximum 95% at 25°C (without condensation)
• Minimum Bending Radius: 49mm (moving applications with forced guidance)
• Minimum Bending Radius: 49mm (moving applications/free movement)
• Minimum Bending Radius: 49mm (stationary applications/permanent installation)

Electrical Characteristics

• Attenuation Factor: 0.052 dB/m maximum at 10 MHz
• Attenuation Factor: 0.195 dB/m maximum at 100 MHz
• Impedance: Optimized for Industrial Ethernet applications
• Signal Integrity: Excellent transmission characteristics for data communication

Applications

• Industrial Automation: SIMATIC NET systems and factory automation
• PROFINET Networks: Type A compliant for industrial communication protocols
• Universal Industrial Use: Suitable for diverse industrial applications
• Automotive Industry: Manufacturing and assembly line installations
• Process Control: Permanent installation in control systems
• Energy Automation: Power generation and distribution systems
• Machine-to-Machine Communication: Industrial Ethernet connectivity

Installation Benefits

• Permanent Installation: Solid core design for fixed installations
• Universal Compatibility: Suitable for connection to IE FC RJ45 2x2 outlets
• Reliable Performance: Consistent signal transmission over long distances
• EMI Protection: Double shielding ensures interference-free operation
• Durable Construction: Robust design for industrial environmental conditions

Compatibility

• Connection Type: For connection to IE FC RJ45 2x2 outlets
• System Integration: Compatible with SIMATIC NET Industrial Ethernet systems
• Protocol Support: PROFINET Type A and Industrial Ethernet protocols
• Connector Compatibility: Designed for use with IE FC RJ45 plugs and outlets

Quality & Compliance

• Country of Origin: Slovakia
• RoHS Compliance: Since 01.01.2006
• Export Control: AL : N / ECCN : N
• EAN: 4019169400473
• UPC: 662643218589
• REACH Compliance: No SVHC substances above 0.1% w/w threshold
• Standards Compliance: EN 13501-6 fire behavior classification

Ordering Information

• Selling Unit: Sold by the meter
• Maximum Delivery Length: 4000 meters
• Quantity Unit: 1 meter
• Packaging Quantity: 1 meter

Environmental Specifications

• UV Resistance: PVC outer sheath provides UV protection
• Oil Resistance: Resistant to industrial oils and chemicals
• Fire Behavior: Eca class reaction-to-fire rating
• Flame Retardant: Meets industrial fire safety requirements
• Chemical Resistance: Suitable for harsh industrial environments
