Murr M8 female 90°, A-code with cable, 3-pole, black, 5m

Product Overview

The Murrelektronik M8 female connector cable is a pre-assembled cordset designed for demanding industrial signal applications requiring space-saving angled connections in dynamic environments. This 5-meter cable features a 90-degree M8 female connector with A-coding and 3-pole configuration, terminated with open-ended wires for flexible system integration. Constructed with PUR (polyurethane) jacket and rated for UL/CSA applications with drag chain capability, it provides reliable signal transmission in dynamic industrial automation and sensor connectivity applications.

Key Features

• M8 female 90-degree connector with A-coding (3-pole configuration)
• 5-meter cable length with open-ended wire termination
• PUR jacket with 3x0.25mm² conductors for superior flexibility
• UL/CSA certification for North American applications
• Drag chain capability for dynamic applications
• Cable sleeves included for enhanced protection
• Black jacket color for professional appearance
• Art-No. 7005 - M8 Lite connector with plastic hexagonal screw

Technical Specifications

• Model: M8 female 90° A-cod. with cable
• Article Number: 7000-08081-6300500
• Connector Type: M8 female, 90-degree angled
• Coding: A-coded

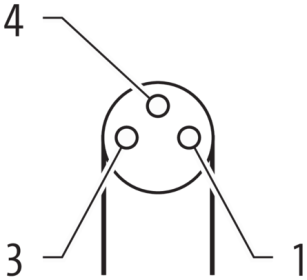

• Pole Configuration: 3-pole
• Cable Length: 5 meters
• Conductor Specification: 3x0.25mm² (#24AWG)

Connection Specifications

• Connector End: M8 female 90-degree connector, A-coded

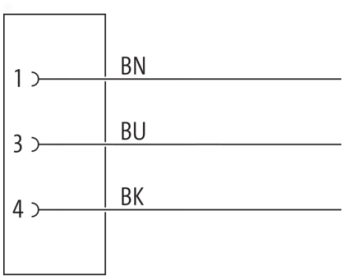

• Wire End: Open-ended flying leads with cable sleeves
• Cable Jacket: PUR (Polyurethane) black
• Conductor Size: 3x0.25mm² (3x#24AWG)
• Drag Chain Rating: UL/CSA + drag chain approved
• Connector Series: M8 Lite with plastic hexagonal screw
• Protection Rating: IP65/IP66K/IP67
• Voltage Rating: 50VAC/60VDC maximum
• Current Rating: 4A maximum per contact

Applications

• Dynamic industrial applications requiring cable movement in confined spaces
• Robotic systems and automated machinery with space constraints
• Sensor connectivity in moving applications with angled connections
• Machine control systems with drag chain requirements and limited clearance
• Industrial automation with flexible cable routing in tight spaces
• Process control instrumentation in dynamic environments requiring 90-degree connections

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Drag Chain Standards: Certified for dynamic flex applications
• Quality Standards: German engineering and manufacturing
• Industrial Standards: Suitable for demanding automation applications
• Flexibility Standards: PUR jacket provides superior bend radius performance
• Protection Standards: IP65/IP66K/IP67 environmental protection

Benefits

• Pre-assembled construction eliminates field termination requirements
• PUR jacket offers superior flexibility and chemical resistance compared to PVC
• Drag chain capability enables use in dynamic and moving applications
• 90-degree connector design saves space in confined installations
• A-coding ensures proper mating and prevents mis-connection
• Open-ended wires allow direct connection to control systems
• UL/CSA certification ensures compliance with North American standards
• 5-meter length provides optimal balance of flexibility and cost-effectiveness

Download existing graphical data for this product:

• Data Sheet
