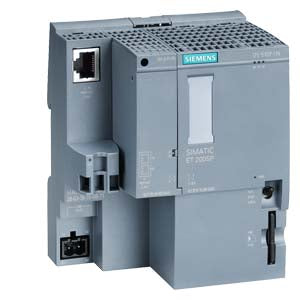

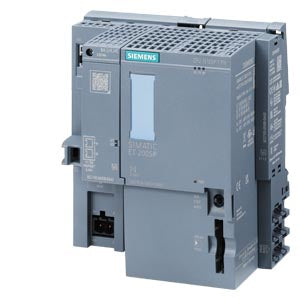

Siemens 1510SP-1 Central processing unit, 3-port switch
View on Siemens 📄 Datasheet
Siemens

Siemens 1510SP-1 Central processing unit, 3-port switch Part number 6ES7510-1DJ01-0AB0

EAN / Barcode 4047623406044
Product Type Control Panel
Product Class Fieldbus, decentr. periphery - basic appliance
ETIM Class Fieldbus, decentr. periphery - basic appliance
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

Product Overview

The Siemens SIMATIC DP, CPU 1510SP-1 PN for ET 200SP, central processing unit with work memory 100 KB for program and 750 KB for data, 1st interface: PROFINET IRT with 3-port switch, 72 ns bit performance, article number 6ES7510-1DJ01-0AB0, is a compact central processing unit designed for use in ET 200SP distributed I/O systems. It provides reliable CPU performance with integrated PROFINET communication and is intended for modular automation architectures where distributed control, fast communication, and compact design are required.

Key Features

  • SIMATIC DP CPU 1510SP-1 PN for ET 200SP systems
  • Integrated PROFINET IRT interface with 3-port switch
  • High processing performance with 72 ns bit execution time
  • Work memory of 100 KB for program and 750 KB for data
  • Compact design for distributed automation applications
  • Supports modular ET 200SP system architecture
  • Designed for industrial automation control tasks
  • Requires SIMATIC memory card for operation

Technical Specifications

  • Article Number: 6ES7510-1DJ01-0AB0
  • Product Type: Central processing unit (CPU)
  • CPU Model: CPU 1510SP-1 PN
  • System: SIMATIC DP for ET 200SP
  • Program Memory: 100 KB
  • Data Memory: 750 KB
  • Communication Interface: PROFINET IRT with integrated 3-port switch
  • Bit Performance: 72 ns
  • Supply Voltage: 24 V DC
  • Memory Card: SIMATIC memory card required
  • Mounting: Installation in ET 200SP station
  • Protection Class: IP20 when installed

Compliance & Standards

  • Designed for distributed automation using SIMATIC ET 200SP
  • Supports PROFINET industrial Ethernet communication
  • Meets Siemens requirements for industrial control CPUs
  • Suitable for factory and machine automation systems

Applications

The Siemens 6ES7510-1DJ01-0AB0 CPU 1510SP-1 PN is used as the central controller in ET 200SP distributed I/O systems. Typical applications include small to medium-scale automation tasks in factory automation, machine control, and distributed control systems where compact CPU performance and PROFINET communication are required.

Technical Specifications

Degree of protection (IP)IP20
Depth75 mm
Explosion safety category for dustNone
Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
Fieldbus connection over separate bus coupler possibleYes
Height117 mm
Input voltage DC28.8 V
Max. input current DC0.9 A
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces RS-4851
Number of interfaces PROFINET1
Number of slots80
Rail mounting possibleYes
Supporting protocol for ASIYes
Supporting protocol for ModbusYes
Supporting protocol for PROFIBUSYes
Supporting protocol for PROFINET IOYes
Supporting protocol for TCP/IPYes
System accessoryYes
Type of voltage (input voltage)DC
Wall mounting/direct mountingYes
Width100 mm
With bus coupler for modular station connectionYes
With pluggable modules, analogue I/OYes
With pluggable modules, central modulesYes
With pluggable modules, communication modulesYes
With pluggable modules, digital I/OYes
With pluggable modules, function and technology modulesYes
With pluggable modules, othersYes
View complete specifications on Siemens

Videos & Media

Product Overview

Overview, features and application examples
