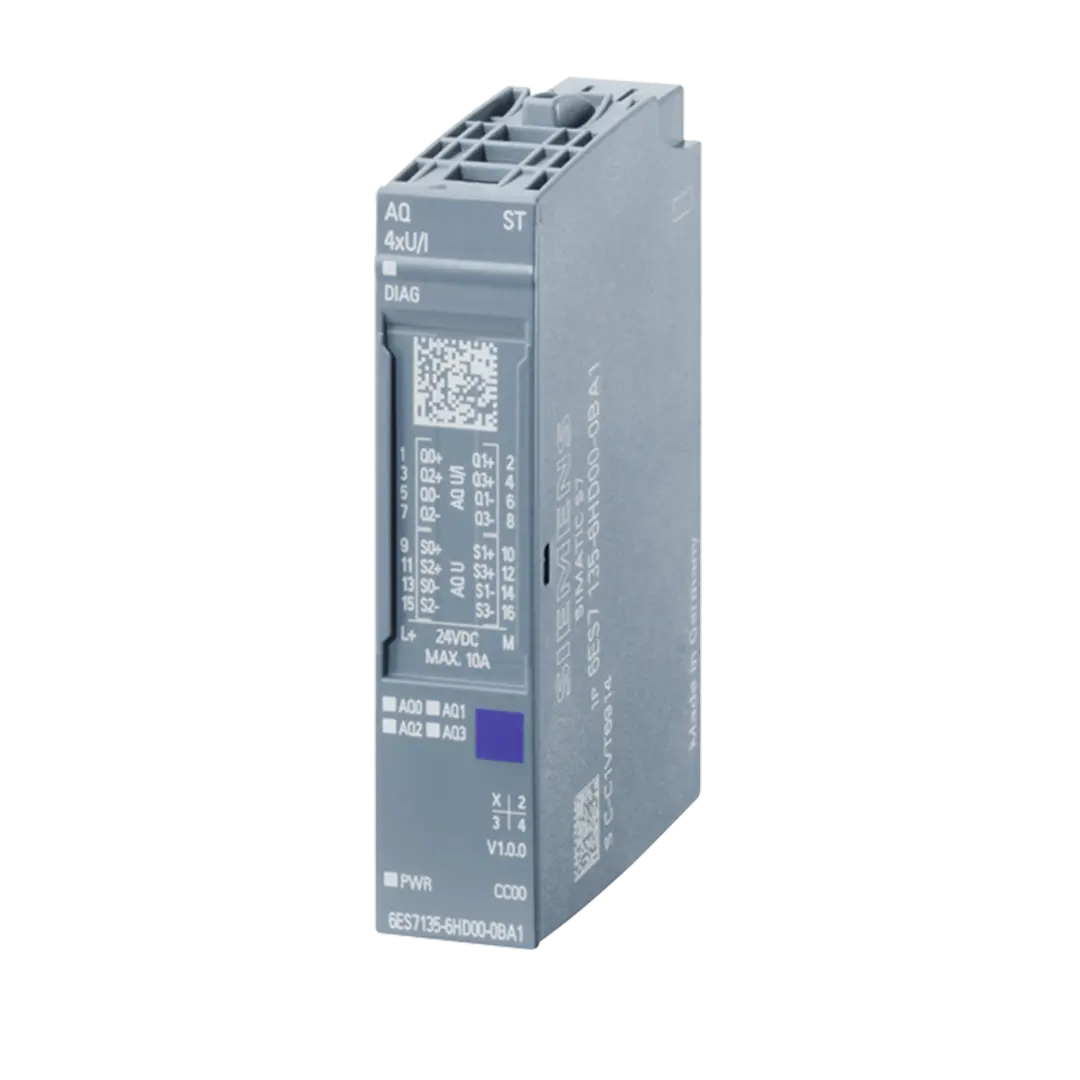

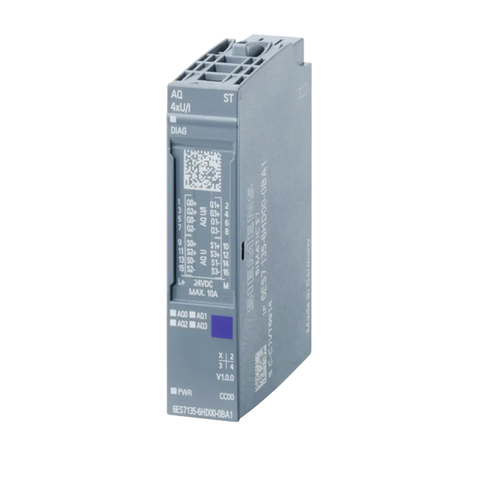

Siemens Analog output module, AQ 4XU/I Standard, 16 bit

Product Overview

SIMATIC ET 200SP analog output module featuring 4 channels with universal voltage/current output (AQ 4XU/I) in Standard configuration. This high-precision module delivers 16-bit resolution with ±0.3% accuracy, supporting both voltage and current output modes for versatile industrial automation applications. Compatible with BU type A0 and A1 base units with color code CC00 for easy identification, the module includes comprehensive diagnostic capabilities and seamless integration with SIMATIC distributed I/O systems.

Key Features & Specifications

• Analog Outputs: 4 universal voltage/current outputs (AQ 4XU/I) with selectable output ranges
• High Resolution: 16-bit resolution with ±0.3% accuracy for precise analog signal control
• Output Modes: Supports both voltage (±10V, 0-10V) and current (±20mA, 0-20mA, 4-20mA) output ranges
• Base Unit Compatibility: Suitable for BU type A0 and A1 with color code CC00 identification
• Diagnostic Integration: Comprehensive module diagnostics with I&M0 to I&M3 support
• Hot-Swappable: Module replacement during operation without system disruption

Technical Specifications

• Article Number: 6ES7135-6HD00-0BA1
• Configuration: AQ 4XU/I Standard analog output module
• Resolution: 16-bit with ±0.3% accuracy
• Dimensions: 0.039 kg weight
• Packaging: 6.80 x 7.70 x 2.40 cm, EAN: 4025515080756
• System Compatibility: SIMATIC ET 200SP distributed I/O system with PROFINET/PROFIBUS integration
• Country of Origin: Germany

Output Ranges & Performance

• Voltage Output: ±10V, 0-10V with high precision control
• Current Output: ±20mA (16-bit), 0-20mA (15-bit), 4-20mA (14-bit) with different resolution levels
• Signal Quality: Low noise, high stability analog outputs suitable for demanding control applications
• Response Time: Fast signal processing for real-time control requirements
• Load Characteristics: Optimized for various load impedances and cable lengths

Applications & Integration

• Process Control: Precise control of valves, dampers, and variable frequency drives
• Manufacturing Systems: Analog control of motors, actuators, and process equipment
• Building Automation: HVAC control, lighting systems, and environmental monitoring
• Quality Control: Precision measurement and control systems requiring high accuracy
• System Integration: Seamless integration with SIMATIC controllers via PROFINET/PROFIBUS communication protocols, configurable with TIA Portal (V11 SP2/V13+), STEP 7 (V5.5 SP3+), and PCS 7 (V8.1 SP1+)

Advanced Configuration & Diagnostics

• Engineering Tools: TIA Portal configurable/integrated as of V11 SP2/V13, STEP 7 V5.5 SP3+ compatibility
• Protocol Support: PROFIBUS GSD Revision 5, PROFINET GSDML V2.3
• Diagnostic Features: Real-time module health monitoring, channel-specific diagnostics, and preventive maintenance support
• Firmware: V1.1 with update capabilities for enhanced functionality

Compliance & Environmental

• Export Control: AL: N / ECCN: 9N9999
• RoHS Compliance: Since 31.01.2012
• WEEE Take-Back: Applicable
• Product Class: A - Standard stock item, returnable within guidelines

REACH Regulation Information

• Regulated Substances: Contains substances from the candidate list in concentrations higher than 0.1% w/w: Lead, Lead monoxide (lead oxide), and Silicic acid (lead salt)
• Risk Assessment: These substances do not pose risks when used as intended, including disposal
• Documentation: Refer to product documentation for additional details
