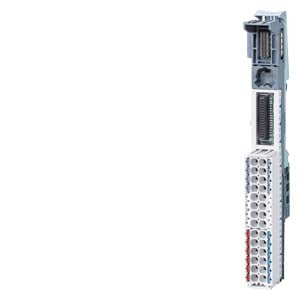

Siemens Simatic ET 200SP Baseunit, push-in terminals Part number 6ES7193-6BP40-0DA1

Product Overview

The SIMATIC ET 200SP BaseUnit BU15-P16+A0+12D/T delivers compact, high-performance I/O module mounting capabilities with integrated temperature acquisition for advanced industrial automation applications. Featuring BU type A1 configuration with push-in terminals and 2x5 additional terminals, this 15mm wide base unit provides robust connectivity and enhanced functionality for demanding ET 200SP distributed I/O systems.

Key Features

• BU Type A1 Configuration: Advanced base unit design optimized for ET 200SP I/O module integration with enhanced load group technology
• Push-in Terminal Technology: Tool-free wiring connections supporting 0.14-2.5 mm²/AWG 26-14 wire cross-sections for fast installation
• Integrated Temperature Acquisition: Built-in temperature sensing capability for enhanced monitoring and process control applications
• Compact 15mm Width: Ultra-space-efficient design with 15mm x 141mm footprint for maximum cabinet density
• Enhanced Terminal Count: 16 process terminals plus 2x5 additional terminals for expanded connection flexibility
• New Load Group Architecture: Advanced power distribution system for improved system reliability and performance
• Color-Coded Design: CC00-CC09/CC74 color coding for simplified identification and maintenance

Technical Specifications

• Base Unit Type: BU15-P16+A0+12D/T, Type A1 | Dimensions: 15mm x 141mm (W x H)
• Terminal Configuration: 16 process terminals + 2x5 additional terminals | Weight: 0.059 kg
• Connection Type: Push-in terminals | Wire Cross-section: 0.14-2.5 mm²/AWG 26-14
• Voltage Rating: 24V DC | Color Code: CC00-CC09/CC74
• Temperature Function: Integrated temperature acquisition capability
• Protection Rating: IP20 | Operating Temperature: Standard industrial range

Applications & Integration

Primary Applications:

• SIMATIC ET 200SP distributed I/O system configurations
• Industrial process control and monitoring systems
• Temperature-critical automation applications
• Compact control cabinet installations requiring high I/O density

System Compatibility:

• Compatible with SIMATIC ET 200SP I/O modules
• Integration with SIMATIC S7-1500 and S7-1200 controllers
• PROFINET communication protocol support
• TIA Portal engineering environment compatibility

Quality & Compliance

• Status: Active Product (PM300) | Origin: Germany
• EAN: 4025515080916 | UPC: 040892933628
• RoHS Compliant: Since 31.01.2012 | WEEE: Take-back obligation applicable
• REACH: Contains lead, lead oxide, and 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one above 0.1% w/w (safe when used as intended)
• Export Control: AL: N / ECCN: 9N9999

Package Contents

• 1 × ET 200SP BaseUnit BU15-P16+A0+12D/T (Type A1), technical documentation, installation accessories

Download existing graphical data for this product:

• Technical Datasheet
• Product Information Page
• Official Support Documentation
• Product EPD Documentation

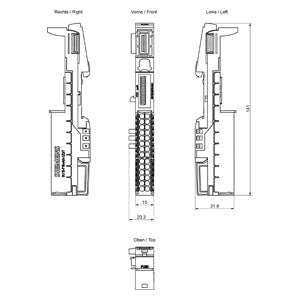

• CAD/Technical Drawings
