Product Overview

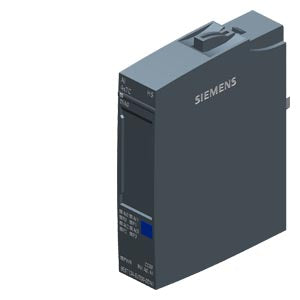

SIMATIC ET 200SP, Analog input module, AI 4xTC High Speed, suitable for BU type A0, A1, Color code CC00, channel diagnostics, 16 bit, +/-0.1%

This high-performance analog input module is specifically designed for the SIMATIC ET 200SP distributed I/O system, optimized for high-speed thermocouple temperature measurements. With 4 analog inputs dedicated to thermocouple (TC) sensors, it delivers exceptional precision and rapid response times for critical temperature monitoring applications in industrial automation environments.

Key Features

• High-Speed Performance: Optimized for rapid thermocouple signal processing, enabling fast temperature measurement and control responses in time-critical applications.
• Precision Temperature Monitoring: 16-bit resolution with ±0.1% accuracy ensures exceptional precision for critical temperature measurement applications.
• Dedicated Thermocouple Support: 4 analog inputs specifically designed for thermocouple sensors, providing optimal signal conditioning and processing.
• Advanced Channel Diagnostics: Comprehensive channel diagnostics capabilities enable proactive maintenance and system optimization through detailed monitoring of individual input channels.
• Compact Design: 15mm width single unit construction optimizes cabinet space utilization while maintaining full functionality and performance.
• Industrial Grade Construction: Robust design meets rigorous industrial standards for reliable operation in demanding environments.

Technical Specifications

• Input Channels: 4 analog inputs for thermocouple sensors
• Resolution: 16-bit
• Accuracy: ±0.1% basic error limit
• Sensor Type: Thermocouple (TC) High Speed
• Base Unit Compatibility: BU type A0, A1
• Color Code: CC00
• Supply Voltage: 19.2V DC
• Net Weight: 0.040 kg
• Dimensions: 15mm (W) x 73mm (H) x 58mm (D)
• Protection Rating: IP20
• Country of Origin: Germany

System Integration

The module seamlessly integrates with the SIMATIC ET 200SP system, requiring a basic unit for mounting and termination. The system ensures maximum flexibility with hot-swapping capabilities, allowing module replacement without system shutdown. The modular design enables easy installation and configuration, contributing to streamlined system setup and maintenance.

Applications

Ideal for industrial automation applications requiring high-speed, precise temperature monitoring, including:

• Process control systems with rapid temperature changes
• Manufacturing equipment requiring fast thermal response
• Heat treatment and furnace control systems
• Chemical processing plants with dynamic temperature control
• Food and beverage production with critical temperature monitoring
• Pharmaceutical manufacturing with precise thermal control

Performance Benefits

• High-Speed Response: Optimized for applications requiring rapid temperature measurement and control
• Reliability: Robust construction ensures consistent performance in challenging industrial environments
• Flexibility: Hot-swapping capabilities enable maintenance without system downtime
• Scalability: Modular design allows for easy system expansion and configuration changes
• Diagnostics: Advanced channel diagnostics facilitate efficient troubleshooting and maintenance

Compliance & Certifications

• Export Control: AL : N / ECCN : 9N9999
• RoHS Compliance: Since: 27.07.2018
• WEEE Compliance: Yes
• Package Contents: 1 Analog Input Module
• EAN: 4047623410270
• UPC: 804766756320
